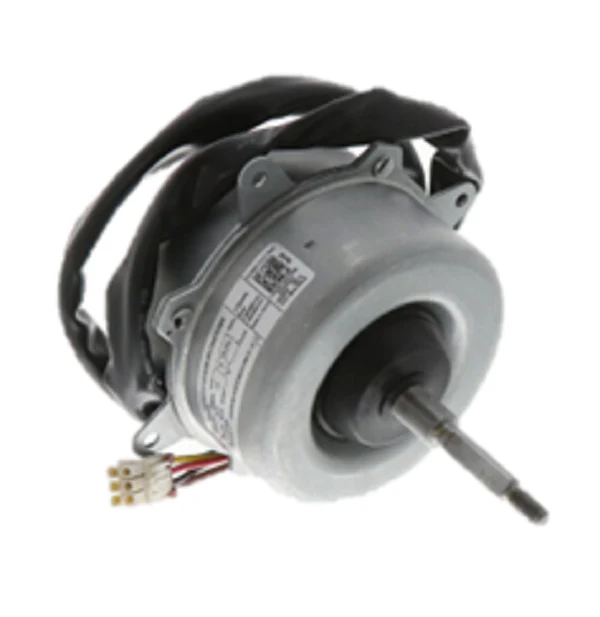

Heil Quaker ICP 11002012031559 Motor
The Heil Quaker ICP 11002012031559 Motor is a precision-engineered OEM replacement fan motor designed for high-performance air conditioning and air handling units. Operating at 220-240V and 50/60Hz, this 48-watt permanent split capacitor (PSC) motor provides the reliable torque and stable RPM required for consistent airflow across the evaporator or condenser coil. For technicians performing field service, this motor features a single side flat shaft with a 5/16-inch diameter and a length of 2 5/16 inches, ensuring a secure fit with the existing fan blade assembly. With its dual-speed capability (delivering up to 890 RPM on high), this factory authorized part is built to maintain system static pressure and overall thermal efficiency. Its clockwise lead-end rotation and rugged construction make it an ideal choice for restoring original equipment specifications in Heil, Quaker, and International Comfort Products (ICP) systems without the need for complex mounting modifications.
Key Benefits- Verified Compatibility: Direct factory authorized replacement for part numbers 11002012008761 and YKT-48-6-206.
- Enhanced Motor Efficiency: The 48W PSC motor design reduces amp draw (0.40/0.47A) while maintaining optimal system airflow.
- Industrial-Grade Build: Features corrosion-resistant materials and a rugged frame housing to withstand demanding outdoor or indoor utility environments.
- Dual-Speed Performance: Offers both high (890/800) and low (830/690) RPM settings for tailored air delivery and noise reduction.
What are the signs that this fan motor needs to be replaced?
Technicians should look for weak airflow, grinding or squealing noises indicative of failed bearings, or a humming sound that persists even after replacing the run capacitor.
Does this motor include the mounting hardware or capacitor?
This is the standalone ICP 11002012031559 motor. We recommend verifying the condition of the existing mounting bracket and always installing a fresh capacitor to match the motor's microfarad requirements for peak performance.
Can this motor be used in 115V applications?
No, this specific model is a 220-240V HVAC motor. Connecting it to a 115V power supply will result in insufficient torque and eventual winding failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
