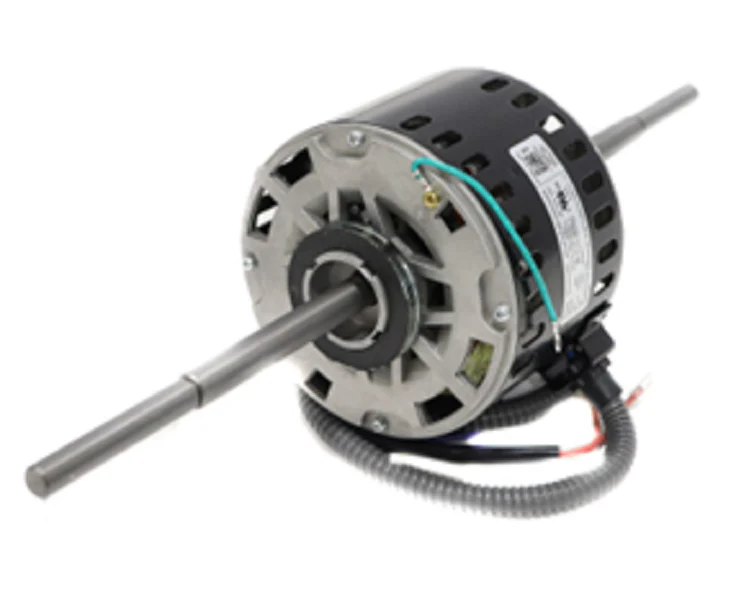

Heil Quaker ICP 11002012007500 Motor
The Heil Quaker ICP 11002012007500 Motor is a high-reliability OEM blower motor engineered for precision air handling in 230V HVACR systems. Operating at 1050 RPM with an 80W output, this 3-speed motor provides the multi-stage airflow control necessary for optimizing static pressure and indoor air quality. Designed for direct compatibility with International Comfort Products (ICP), Heil, and Tempstar furnaces and air handlers, this unit serves as a critical component for restoring system efficiency without the performance trade-offs of generic universal parts.
The 11002012007500 features a robust 48-frame design, utilizing a multi-tap configuration to support varying blower speeds (Low, Medium, High). This flexibility allows technicians to fine-tune the cooling and heating cycles to meet specific ductwork requirements. When performing a HVAC motor replacement, ensuring correct voltage alignment and shaft torque is paramount; this 3-speed motor is factory-calibrated to maintain the original cubic feet per minute (CFM) ratings of your equipment, preventing overheating of heat exchangers and preserving compressor longevity.
Key Benefits
- Direct OEM Fit: Ensures seamless mechanical integration with ICP furnace blower assemblies, eliminating the need for belly band adjustments or mounting modifications.
- 3-Speed Versatility: Triple-tap design allows for precise CFM adjustment to match the specific heating or cooling load requirements of the structure.
- Energy Efficient 80W Operation: Optimized power consumption reduces operational overhead while maintaining consistent torque at 1050 RPM.
- Broad Compatibility: Engineered for use across a wide range of Heil Quaker, Comfortmaker, and Arcoaire air handling units.
Common Questions
What are the wiring specifications for the 3-speed tap?
This motor typically utilizes a standard color-coded lead system for Common, High, Medium, and Low speeds. Always refer to the specific wiring diagram on the original unit's service panel to ensure correct capacitor and line voltage termination.
Is this a permanent split capacitor (PSC) or ECM motor?
The 11002012007500 is a high-efficiency PSC motor. It requires a compatible run capacitor for operation; verify the MFD rating on the service plate for proper phase shift and motor protection.
How do I confirm this replaces my existing Heil motor?
Confirming the 11002012007500 part number in your technical manual or on the existing motor's data plate is the most accurate method. This motor is the factory-specified replacement for numerous ICP-manufactured 230V platforms.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
