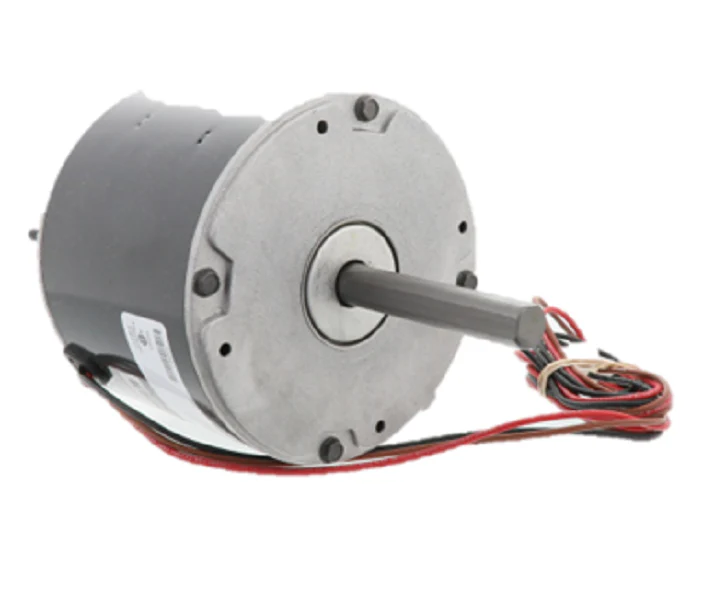

Heil Quaker ICP 1098505 Motor
The Heil Quaker ICP 1098505 Motor is a heavy-duty, 1/3 HP condenser motor designed for mission-critical cooling applications in ICP, Heil, and Tempstar residential and light commercial condensing units. Operating at 208-230V and pulling 1.7 Amps, this single-phase HVAC motor provides a reliable 1140 RPM output, ensuring optimal heat exchange across the condenser coils. Built on a standard 48 NEMA frame size, it features a durable sleeve bearing design and a Permanent Split Capacitor (PSC) configuration for high starting torque and consistent efficiency. The CCW rotation (counter-clockwise) and versatile band/thru-bolt mount allow for straightforward integration into existing fan shrouds and motor brackets. As an OEM replacement motor, it maintains factory performance standards, ensuring proper airflow dynamics and system balance without the vibration issues often associated with generic alternatives.
Key Benefits:- Optimized Airflow: The 1140 RPM single-speed design is calibrated to match original equipment specifications for maximum thermal rejection.
- Rugged Construction: Features a 48-frame motor housing with sleeve bearings for quiet operation and resistance to environmental wear.
- Direct Fitment: Designed for an exact match with Heil Quaker ICP equipment using the band/thru-bolt mounting system.
- PSC Efficiency: Utilizes Permanent Split Capacitor technology to reduce energy consumption and motor heat during long run cycles.
What capacitor is required for the 1098505 motor?
This motor typically requires a 7.5 MFD / 370V run capacitor. It is highly recommended to replace the capacitor whenever installing a new condenser fan motor to prevent premature winding failure.
Can I use this as a universal replacement?
While the 1/3 HP 1098505 motor fits many 48-frame HVAC applications, always verify the CCW rotation and 1140 RPM speed match your specific unit's fan blade pitch to avoid compressor overheating.
How do I confirm the rotation sense?
This motor is CCW Rotation (Counter-Clockwise) as viewed from the lead end. Ensure your fan blade is designed for this rotation to maintain proper airflow direction through the coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
