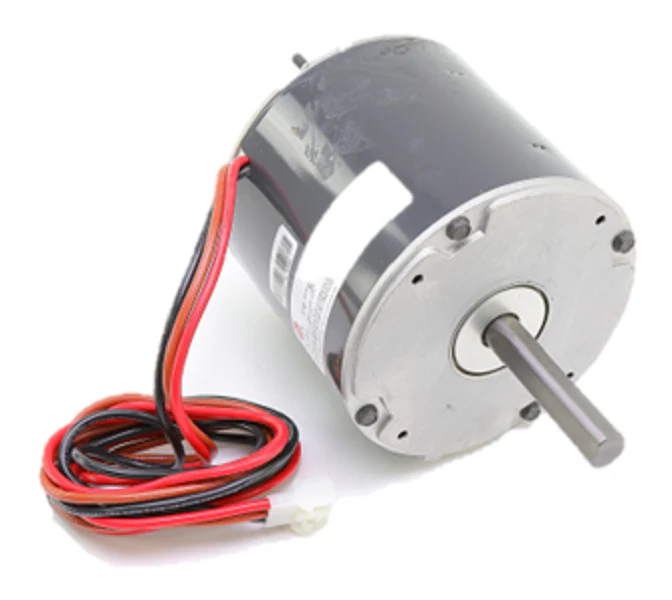

Heil Quaker ICP 1098504 Motor
The Heil Quaker ICP 1098504 Condenser Fan Motor is a high-performance 1/2 HP PSC motor designed for heavy-duty outdoor applications. Operating at 208-230V and pulling 1.8 Amps, this 1140 RPM motor delivers the precise torque required for optimal heat transfer across the condenser coils. Built on a standard NEMA 48 frame, it features a sleeve bearing design and Counter-Clockwise (CCW) rotation, making it a drop-in replacement for numerous ICP, Heil, and Tempstar condensing units. The single-phase 1-speed configuration ensures stable operation when paired with a properly rated run capacitor. Whether you are performing a seasonal preventative maintenance swap or an emergency field repair, the Band/Thru-Bolt mounting system provides the versatility needed for secure installation in various housing configurations.
- Universal NEMA 48 Frame: Ensures seamless mechanical integration with standard residential and light commercial mounting brackets.
- High-Efficiency 1140 RPM: Perfectly balanced speed for maximum airflow versus noise ratio in HVACR heat rejection tasks.
- Permanent Split Capacitor Design: Optimized for lower energy consumption and cooler internal operating temperatures.
- Durable Sleeve Bearings: Engineered to handle the radial loads associated with large-diameter condenser fan blades.
Common Installation Questions
What is the correct rotation for the 1098504?
This motor is factory-configured for CCW Lead End rotation. Always verify the pitch of your fan blade before installation to ensure proper airflow direction.
Does this motor include the run capacitor?
Capacitors are typically sold separately. It is critical to match the MFD and voltage rating specified on the nameplate of this ICP replacement motor to prevent winding failure.
Can I use this for heat pump applications?
Yes, as long as the HP, RPM, and frame size match the OEM specifications, this motor is suitable for both straight-cool and heat pump outdoor sections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
