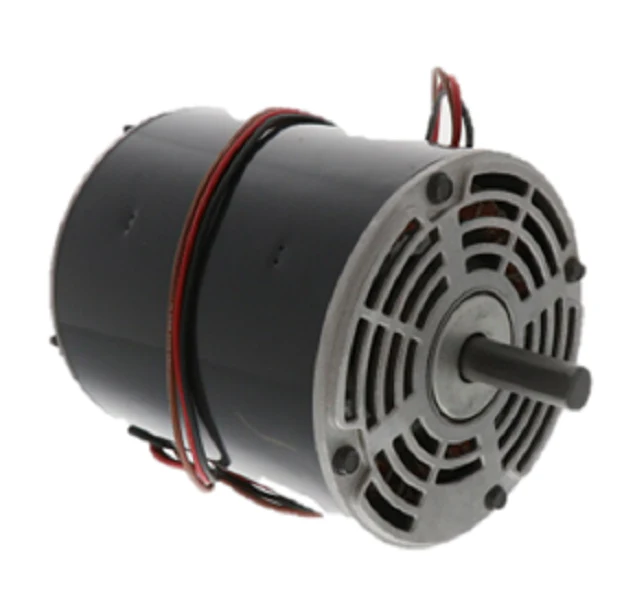

Heil Quaker ICP 1098503 Motor
The Heil Quaker ICP 1098503 is a high-performance condenser fan motor engineered for demanding commercial and industrial HVACR applications. Operating on 575V single phase power, this 3/4 HP motor delivers a consistent 1140 RPM (single speed) to maintain necessary static pressure and heat transfer across the condenser coil. Built on a NEMA 48 frame, it features a sleeve bearing design for quieter operation and long-term reliability in vertical or horizontal orientations. This Permanent Split Capacitor (PSC) motor is rated at 1.2 Amps and utilizes CCW rotation (lead end) to match original equipment configurations. Designed for a band or thru-bolt mount, the 1098503 ensures a precise fit for technicians performing field replacements on Heil, Quaker, and International Comfort Products (ICP) units. Its robust construction handles high ambient temperatures, ensuring stable HVAC motor performance during peak thermal loads without compromising efficiency or system cooling capacity.
Key Benefits- High-Voltage Efficiency: Optimized for 575V electrical systems, reducing amperage draw to 1.2 Amps for stable operation.
- OEM Compatibility: Exact drop-in ICP replacement motor for specific condenser models, eliminating the need for bracket modifications.
- Industrial Build: Features a durable 48 frame and sleeve bearings designed to withstand the vibration levels of heavy-duty fan blades.
- Standardized Mount: Versatile band and thru-bolt mounting options provide flexibility for various shroud and housing configurations.
What is the rotation direction for the ICP 1098503?
This motor is configured for CCW (Counter-Clockwise) rotation from the lead end/shaft end to ensure proper airflow direction in standard condenser setups.
Can I use this motor in a 460V system?
No, this motor is specifically wound for 575Vac. Operating it at a lower voltage will result in insufficient torque and eventual winding failure.
Does this motor require a capacitor?
Yes, as a Permanent Split Capacitor motor, it requires a specific MFD-rated capacitor (sold separately) to ensure proper starting torque and running efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
