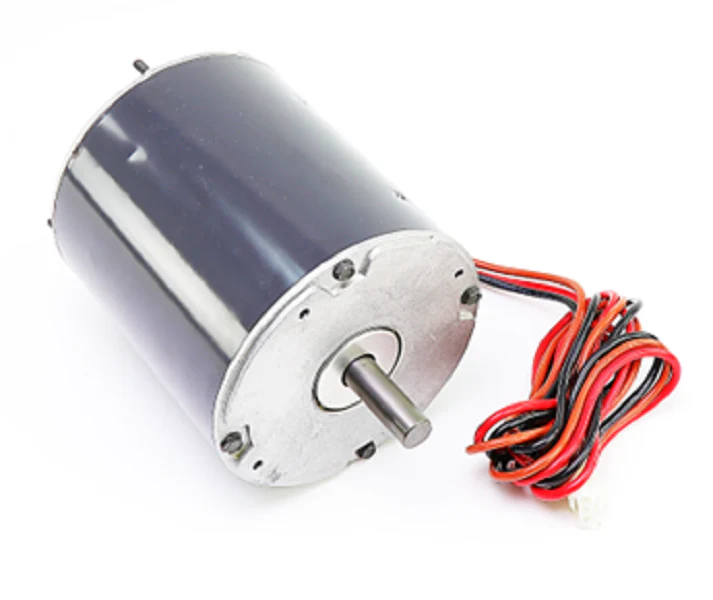

Heil Quaker ICP 1098502 Motor
The Heil Quaker ICP 1098502 Motor is a high-performance 3/4 HP condenser fan motor designed specifically for heavy-duty commercial HVAC applications requiring a 460V 3-phase power supply. Operating at a synchronous speed of 1140 RPM, this single-speed PSC (Permanent Split Capacitor) motor utilizes a 48 NEMA frame size, making it a critical replacement part for maintaining optimal head pressure in large-scale condensing units. Engineered with sleeve bearings for quiet operation and a CCW rotation (lead end), this unit is built for durability in exterior environments. The band/thru-bolt mounting configuration ensures a secure fit within the fan shroud, preventing vibration-related hardware fatigue. This motor draws 1.4 Amps under full load, offering a reliable solution for technicians needing to restore system efficiency without modifying the existing electrical footprint or mounting setup.
Key Benefits- Direct OEM Replacement: Ensures seamless compatibility with Heil Quaker and ICP systems, eliminating the need for field modifications.
- High-Voltage Stability: Rated for 460Vac operation, providing the necessary torque for demanding commercial cooling cycles.
- Optimized Airflow: The 1140 RPM speed profile is calibrated for maximum heat dissipation across the condenser coils.
- Robust Construction: The 48 frame housing and sleeve bearing design offer a balance of mechanical longevity and reduced acoustic output.
Is the 1098502 motor compatible with other ICP brands?
Yes, as an ICP 1098502 part, it is the standard replacement for various commercial units under the Heil, Quaker, Comfortmaker, and Tempstar labels that specify this part number.
Does this motor require a capacitor for installation?
As a Permanent Split Capacitor motor, it requires a specific MFD-rated capacitor to ensure proper starting torque and efficiency. Always check the nameplate for the correct capacitor sizing during HVAC motor replacement.
Can this motor be mounted in any orientation?
This motor features band and thru-bolt mounting, typical for condenser fan motor applications where the motor is mounted vertically or horizontally within the fan bracket.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $505.42
-65%$505.42
$176.90Heil Quaker ICP 1098502 Motor
