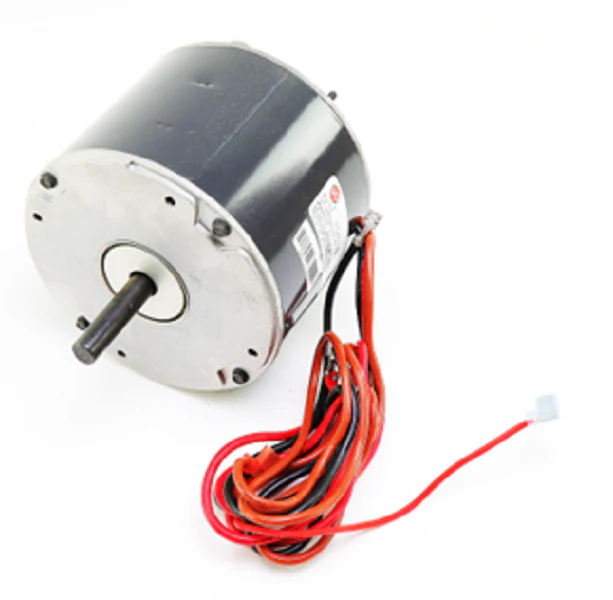

Heil Quaker ICP 1088236 Motor
The Heil Quaker ICP 1088236 Motor is a heavy-duty 1/3 HP condenser fan motor designed for high-static pressure applications in residential and light commercial HVAC systems. This 48 NEMA frame size unit operates on 208-230V single-phase power at a steady 1075 RPM. As a Permanent Split Capacitor (PSC) motor, it maintains a low 1.9 Amp draw, ensuring electrical efficiency and reduced heat rise during peak summer cycles. The sleeve bearing design provides quiet operation, while the thru-bolt mount configuration allows for a secure, drop-in fit for direct-drive Heil, Comfortmaker, and Tempstar condensing units. With a CW (Clockwise) rotation as viewed from the lead end, this motor serves as a precise OEM replacement motor for ICP part numbers targeting reliable heat dissipation and consistent airflow across the condenser coil.
Key Benefits for Technicians:- Drop-In Compatibility: Matches factory Heil Quaker 1088236 specifications for fast installation without cabinet modifications.
- High-Torque Performance: The 1075 RPM single-speed output ensures optimal refrigerant cooling even in high-ambient conditions.
- Industrial Build: Features a rugged 48 frame housing and sleeve bearings for long-term vibration dampening.
- Electrical Efficiency: Optimized 1.9 Amp rating reduces strain on the dual-run capacitor and control board.
What is the proper rotation for this motor?
This motor is configured for Clockwise (CW) rotation. Always verify the fan blade pitch and original motor lead-end rotation before securing the thru-bolt mount.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it must be paired with a run capacitor (typically 5 MFD/370V, though you should check the rating on the ICP 1088236 nameplate) to ensure proper starting torque and thermal protection.
Can this be used in generic 48-frame applications?
While it fits standard 48-frame mounts, it is specifically engineered for Heil Quaker and ICP equipment to match the exact airflow requirements and shaft length of the original 1/3 HP condenser assembly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $295.76
-65%$295.76
$103.52Heil Quaker ICP 1088236 Motor
The Heil Quaker ICP 1088236 Motor is a heavy-duty 1/3 HP condenser fan motor designed for high-static pressure applications in residential and light commercial HVAC systems. This 48 NEMA frame size unit operates on 208-230V single-phase power at a steady 1075 RPM. As a Permanent Split Capacitor (PSC) motor, it maintains a low 1.9 Amp draw, ensuring electrical efficiency and reduced heat rise during peak summer cycles. The sleeve bearing design provides quiet operation, while the thru-bolt mount configuration allows for a secure, drop-in fit for direct-drive Heil, Comfortmaker, and Tempstar condensing units. With a CW (Clockwise) rotation as viewed from the lead end, this motor serves as a precise OEM replacement motor for ICP part numbers targeting reliable heat dissipation and consistent airflow across the condenser coil.
Key Benefits for Technicians:- Drop-In Compatibility: Matches factory Heil Quaker 1088236 specifications for fast installation without cabinet modifications.
- High-Torque Performance: The 1075 RPM single-speed output ensures optimal refrigerant cooling even in high-ambient conditions.
- Industrial Build: Features a rugged 48 frame housing and sleeve bearings for long-term vibration dampening.
- Electrical Efficiency: Optimized 1.9 Amp rating reduces strain on the dual-run capacitor and control board.
What is the proper rotation for this motor?
This motor is configured for Clockwise (CW) rotation. Always verify the fan blade pitch and original motor lead-end rotation before securing the thru-bolt mount.
Does this motor require a specific capacitor?
Yes, as a PSC motor, it must be paired with a run capacitor (typically 5 MFD/370V, though you should check the rating on the ICP 1088236 nameplate) to ensure proper starting torque and thermal protection.
Can this be used in generic 48-frame applications?
While it fits standard 48-frame mounts, it is specifically engineered for Heil Quaker and ICP equipment to match the exact airflow requirements and shaft length of the original 1/3 HP condenser assembly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
