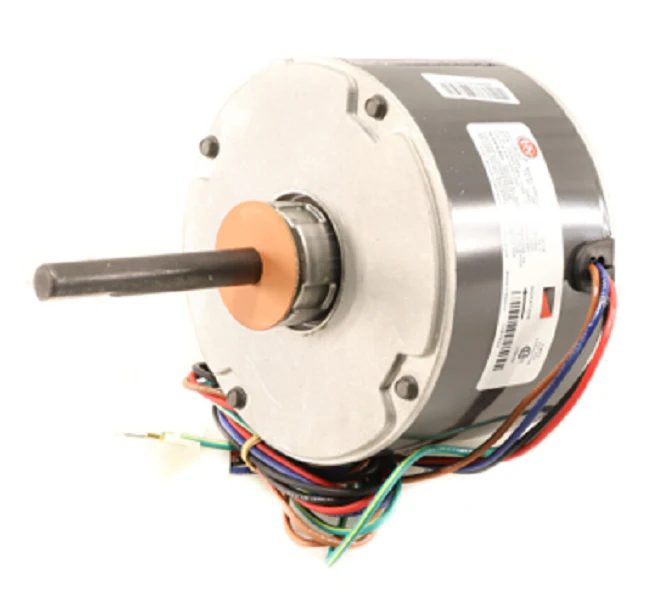

Heil Quaker ICP 1087623 Motor
The Heil Quaker ICP 1087623 Motor is a direct-drive 1/5 HP condenser fan motor designed for reliable thermal transfer in residential and light commercial HVAC systems. This 48 NEMA frame size unit operates as a permanent split capacitor (PSC) motor at 208-230V, delivering a consistent 1075 RPM. Featuring two-speed functionality and drawing 1.38 amps, this sleeve bearing motor is engineered for efficient heat dissipation and quiet operation. The clockwise (CW) rotation and band mount configuration ensure direct compatibility with a wide range of ICP, Heil, and Tempstar outdoor units. When replacing a failed fan motor, this single-phase HVAC motor provides the mechanical torque necessary to maintain head pressures within OEM specifications. Contractors should verify capacitor requirements and ensure the lead lengths and band mounting align with the existing shroud for a seamless field installation.
Key Benefits:
- Optimized Performance: The 1075 RPM rating ensures proper CFM across the condenser coils for stable refrigerant cycles.
- Versatile Application: The 2-speed capability allows for precise airflow modulation depending on the specific system control board requirements.
- Standardized Housing: The NEMA 48 frame and band mount design allow for quick integration into standard ICP equipment housings.
- Durable Construction: Engineered with sleeve bearings for reduced vibration and long-term reliability in vertical shaft applications.
Common Questions:
Is this motor compatible with 115V systems?
No, the ICP 1087623 is rated specifically for 208-230Vac. Applying lower voltage will result in torque failure and winding damage.
Does this motor include the run capacitor?
This condenser fan motor requires a permanent split capacitor for operation. Always check the motor nameplate for the specific MFD/uF rating required for this 1/5 HP motor.
Can I use this for a counter-clockwise (CCW) application?
This specific model is a CW rotation motor. Verify the rotation direction from the lead end of your current motor to ensure property airflow direction through the coil.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
