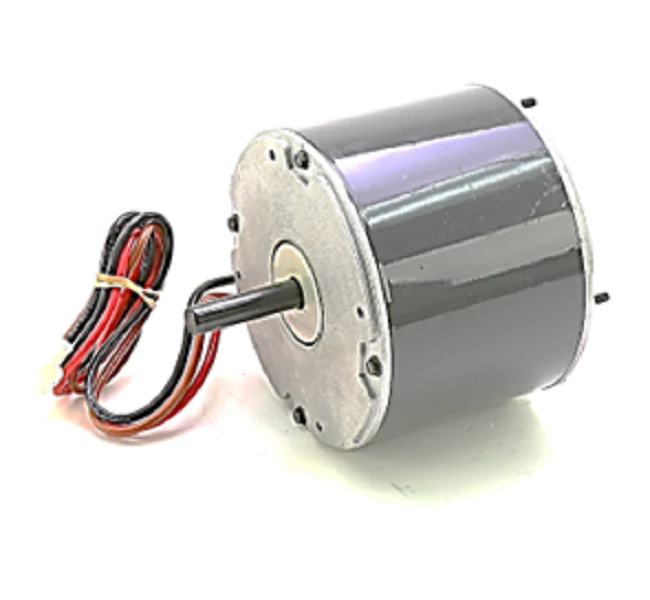

Heil Quaker ICP 1086696 Motor
The Heil Quaker ICP 1086696 Motor is a high-performance 1/3 HP condenser fan motor engineered for reliability in demanding residential and light commercial HVAC applications. This direct drive condenser motor operates at 208-230V and delivers 1075 RPM, ensuring efficient heat exchange for ICP AC units and heat pumps. Designed with a 48 NEMA frame size, this PSC motor features a durable sleeve bearing system and a 1/2-inch shaft diameter, making it a standard replacement for Heil air conditioner parts.
For technicians in the field, the ICP 1086696 motor replacement is built for versatility, supporting both band and thru-bolt mounting configurations. This single-speed, single-phase 1075 RPM fan motor is rated at 1.9 Amps and requires a 5 MFD / 370V run capacitor for optimal startup and operation. The clockwise (CW) rotation is specifically calibrated to meet the airflow requirements of genuine International Comfort Products (ICP) equipment, maintaining system pressure and preventing compressor overheat.
Key Benefits:- OEM Compatibility: Drops directly into Heil, Tempstar, and Comfortmaker units, including popular models like the NAC048 and NHP036 series.
- Optimized Performance: The permanent split capacitor (PSC) design provides higher efficiency and lower operating costs compared to older shaded-pole alternatives.
- Quiet Operation: Precision-machined sleeve bearings reduce vibration and mechanical noise during high-load outdoor operation.
- Rugged Construction: The 48-frame housing is treated for weather resistance, ensuring long-term durability in harsh environments.
What capacitor is required for the ICP 1086696?
This motor is designed to work with a 5 MFD / 370V run capacitor. It is standard practice to replace the capacitor during any motor swap to prevent premature failure from out-of-tolerance components.
Can I use this for a reversible application?
The 1086696 is a dedicated clockwise (CW) rotation motor. Always verify the lead end rotation of your existing unit before installation to ensure proper airflow direction.
How do I verify if this fits my specific Heil or Tempstar unit?
You should cross-reference the 1086696 part number or the K55HXHEN-8599 manufacturer number against your unit's data plate. This motor is the primary spec for several 3-ton to 5-ton condenser models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $260.74
-65%$260.74
$91.26Heil Quaker ICP 1086696 Motor
The Heil Quaker ICP 1086696 Motor is a high-performance 1/3 HP condenser fan motor engineered for reliability in demanding residential and light commercial HVAC applications. This direct drive condenser motor operates at 208-230V and delivers 1075 RPM, ensuring efficient heat exchange for ICP AC units and heat pumps. Designed with a 48 NEMA frame size, this PSC motor features a durable sleeve bearing system and a 1/2-inch shaft diameter, making it a standard replacement for Heil air conditioner parts.
For technicians in the field, the ICP 1086696 motor replacement is built for versatility, supporting both band and thru-bolt mounting configurations. This single-speed, single-phase 1075 RPM fan motor is rated at 1.9 Amps and requires a 5 MFD / 370V run capacitor for optimal startup and operation. The clockwise (CW) rotation is specifically calibrated to meet the airflow requirements of genuine International Comfort Products (ICP) equipment, maintaining system pressure and preventing compressor overheat.
Key Benefits:- OEM Compatibility: Drops directly into Heil, Tempstar, and Comfortmaker units, including popular models like the NAC048 and NHP036 series.
- Optimized Performance: The permanent split capacitor (PSC) design provides higher efficiency and lower operating costs compared to older shaded-pole alternatives.
- Quiet Operation: Precision-machined sleeve bearings reduce vibration and mechanical noise during high-load outdoor operation.
- Rugged Construction: The 48-frame housing is treated for weather resistance, ensuring long-term durability in harsh environments.
What capacitor is required for the ICP 1086696?
This motor is designed to work with a 5 MFD / 370V run capacitor. It is standard practice to replace the capacitor during any motor swap to prevent premature failure from out-of-tolerance components.
Can I use this for a reversible application?
The 1086696 is a dedicated clockwise (CW) rotation motor. Always verify the lead end rotation of your existing unit before installation to ensure proper airflow direction.
How do I verify if this fits my specific Heil or Tempstar unit?
You should cross-reference the 1086696 part number or the K55HXHEN-8599 manufacturer number against your unit's data plate. This motor is the primary spec for several 3-ton to 5-ton condenser models.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
