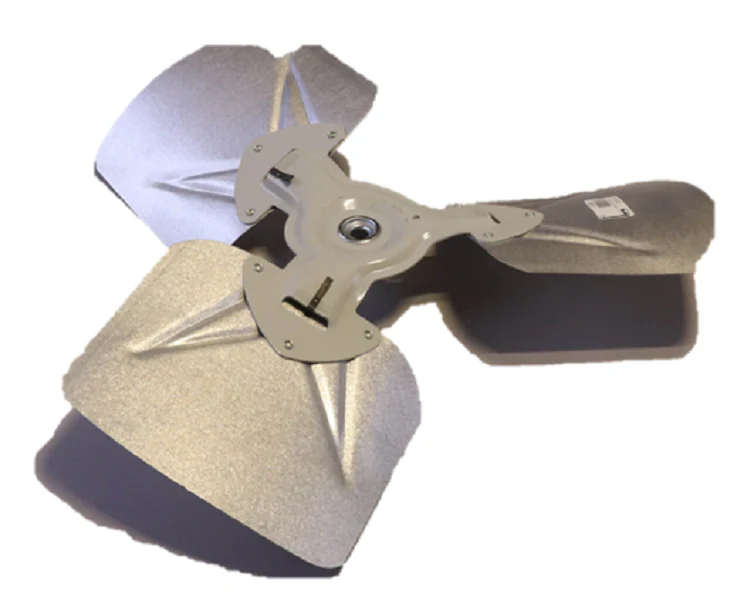

Heil Quaker ICP 1086511 Fan Blade
The Heil Quaker ICP 1086511 Fan Blade is a heavy-duty OEM replacement component engineered for high-performance direct-drive condenser fan applications. This 3-blade aluminum fan features a precise 24-degree pitch and a 20-inch diameter, making it the standard specification for maintaining the specific static pressure and CFM requirements of ICP, Heil, Tempstar, and Comfortmaker condensing units. Designed with a 1/2-inch bore on the discharge side, this hub configuration ensures a secure fit on the motor shaft, preventing vibration-induced fatigue that often leads to premature motor bearing failure.
For field technicians, matching the CCW (Counter-Clockwise) rotation as viewed from the discharge side is critical to ensuring proper heat rejection across the condenser coils. Using a non-OEM or incorrectly pitched blade can cause motor overloading or insufficient subcooling, compromising the overall efficiency of the refrigeration cycle. This HVAC replacement fan blade provides a drop-in solution for restoring factory-standard airflow without the need for hub modifications or field adjustments.
Key Benefits:- OEM-Spec Airflow: Engineered for ICP HVAC cooling systems to ensure the exact CFM needed for optimal thermal exchange.
- Resilient Construction: High-grade aluminum blades resist corrosion and maintain structural integrity under high-static load.
- Perfect Balance: Factory-balanced to eliminate shaft wobble, extending the service life of the condenser fan motor.
- Technical Precision: The 24? blade pitch is specifically calibrated to match the amperage draw of OEM motors.
- How do I verify the rotation for the 1086511? This blade is CCW (Counter-Clockwise) rotation when looking at the discharge side (the air blowing away from you). Always verify your motor's lead configuration before installation.
- What motor shaft size is required? This part is designed for a standard 1/2-inch diameter shaft. Ensure the shaft is sanded and lubricated before sliding the new hub into position to avoid seizing.
- Can I use this as a substitute for a 4-blade fan? No. Changing the blade count or pitch will alter the motor's torque requirements and can lead to motor burnout. Always match the 1086511 part number to the original equipment specs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
