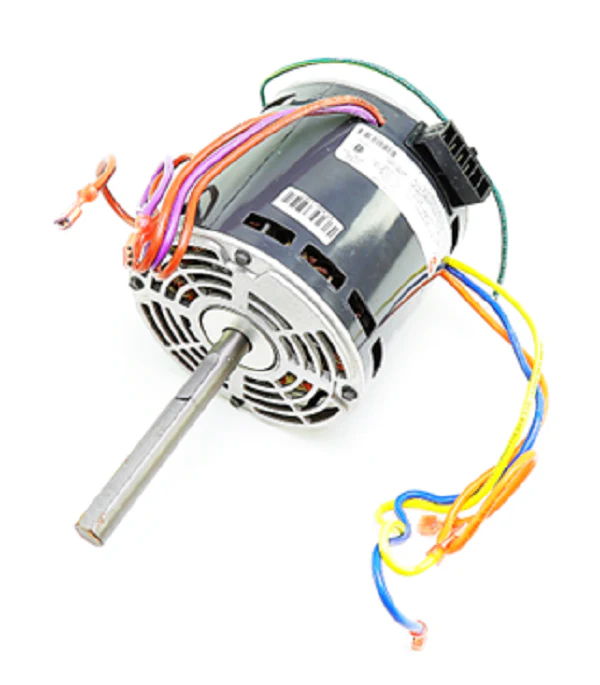

Heil Quaker ICP 1085643 Motor
The Heil Quaker ICP 1085643 Motor is a high-performance, direct drive PSC blower motor engineered for heavy-duty commercial and residential HVAC applications. Operating at 460Vac and single phase, this 1/2 HP blower motor delivers a consistent 1075 RPM to ensure optimal static pressure handling and system airflow. Designed with a 48 NEMA frame size and a 5/8-inch diameter shaft, it features a 4-speed configuration, allowing technicians to fine-tune the CFM output to match specific ductwork requirements. The CCW rotation (Counter-Clockwise) and sleeve bearing design provide quiet, reliable operation in band mount installations.
Built as a genuine ICP OEM replacement motor, this assembly is a drop-in solution for Heil, Tempstar, and Comfortmaker units, including popular models like the APFM and GPCM series. The Permanent Split Capacitor (PSC) design requires a 15 MFD at 370VAC capacitor (sold separately) for high-torque startups. With a 2-amp draw and thermal protection, it is designed for continuous air-over duty, maintaining the efficiency and factory-stated sound levels of your original equipment.
Key Benefits:- Multi-Speed Flexibility: Features 4-speed taps for precise airflow adjustment across various heating and cooling stages.
- OEM Compatibility: Exact replacement for Heil Quaker 1085643, ensuring no modifications are needed for bracket or wiring alignment.
- Industrial Build: Rated for 460V applications, making it ideal for 3-phase commercial building supplies requiring single-phase fan power.
- Rugged Reliability: Utilizes sleeve bearings for reduced vibration and longevity in typical indoor air handler environments.
- What rotation is required for this motor? This motor is designed for CCW (Counter-Clockwise) rotation, which is standard for many ICP blower wheel vertical assemblies.
- Does this include the capacitor? No, this PSC motor requires a 15 MFD / 370V capacitor for proper operation; always replace the capacitor when installing a new motor to prevent premature failure.
- Will this work in place of a 230V motor? No, this is a 460Vac motor. Applying incorrect voltage will result in immediate winding failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
