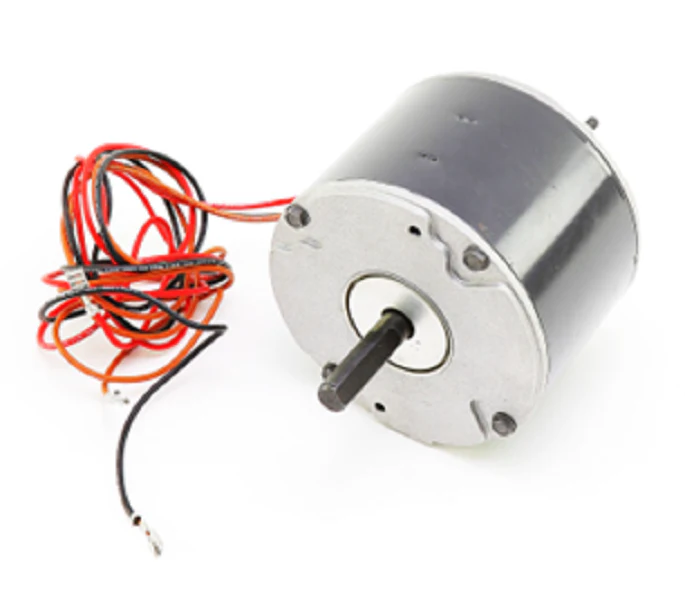

Heil Quaker ICP 1080612 Motor
Providing reliable heat transfer for industrial and residential condensing units, the Heil Quaker ICP 1080612 Motor is a high-efficiency Heil Quaker replacement condenser fan motor designed for longevity in demanding environments. This 1/8 HP PSC motor operates on 208-230V single phase power, drawing a low 0.57 Amps to minimize energy consumption while maintaining a steady 1120 RPM. Built on a 42 NEMA frame size, it features a sleeve bearing design and CCW (counter-clockwise) rotation, making it a drop-in ICP 1080612 HVAC part for technicians performing field repairs. The condenser motor 1120 RPM specification is critical for maintaining proper head pressure across the coil. Utilizing a permanent split capacitor design, this motor ensures consistent torque and thermal protection during high-ambient operation. Whether you are performing a seasonal swap or an emergency repair, this Heil Quaker 1080612 motor provides the build quality required for ICP HVAC equipment maintenance.
- Universal Mounting: Features band/thru-bolt mounting options compatible with standard condenser fan brackets.
- Optimized Efficiency: Permanent Split Capacitor (PSC) design offers higher electrical efficiency than shaded-pole alternatives.
- Thermal Durability: Rated for high-temperature environments to prevent premature winding failure during peak summer loads.
- Quiet Operation: Precision-engineered sleeve bearings reduce vibration and mechanical noise within the cabinet.
Common Technical Questions
What is the frame size and mounting style for the 1080612?
This motor utilizes a standard 42 Frame (approximately 5-inch diameter) and supports both thru-bolt and belly-band mounting configurations.
Can I use a different capacitor than the one specified?
It is critical to match the MFD rating on the motor nameplate to ensure the starting torque and running amperage remain within the manufacturer's tolerances.
Is this motor reversible?
No, this specific model is factory-set for CCW rotation; always verify the fan blade pitch before installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
