Heil Quaker ICP 1064944 Motor

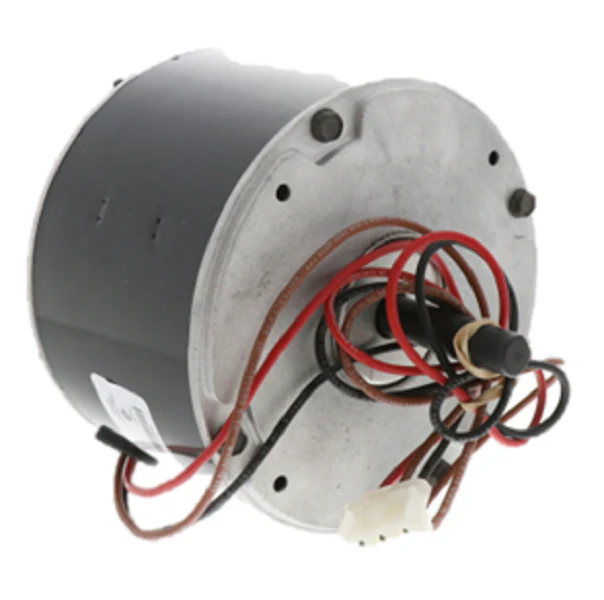

The Heil Quaker ICP 1064944 is a professional-grade OEM replacement condenser fan motor designed for high-efficiency heat pump and air conditioning applications. This 1/8 HP PSC motor operates on 208-230V single-phase power, pulling a low 0.64 Amps for optimized energy consumption. Built on a 48 NEMA frame, it features a sleeve bearing design and a CW rotation (clockwise) profile. With a rated speed of 1110 RPM, this single-speed motor provides the precise airflow required to maintain head pressure and ensure proper heat rejection across the condenser coils. The band/thru-bolt mounting configuration allows for straightforward installation in standard ICP, Heil, and Quaker outdoor sections. Using a Permanent Split Capacitor design, the 1064944 ensures reliable start-up torque and stable performance during peak load conditions, making it a critical component for maintaining system uptime in residential and light commercial HVACR equipment.
Key Benefits for HVACR Technicians:- Precise OEM Specifications: Exact electrical match for ICP 1064944, eliminating the need for field modifications or bracket adjustments.
- Efficient Power Draw: The 0.64 Amp rating ensures compatibility with existing contactors and wiring harnesses without overloading circuits.
- Durable 48 Frame Design: Standard NEMA 48 frame diameter with thru-bolt capability fits a wide variety of shroud and motor mount configurations.
- Reliable Heat Rejection: The 1110 RPM operation is calibrated to meet specific manufacturer CFM requirements for optimal refrigerant cooling.
What capacitor is required for the ICP 1064944 motor?
This condenser motor typically requires a 5 MFD / 370V run capacitor; always verify the capacitor rating on the motor nameplate during installation to ensure proper phase shift and motor longevity.
Is this motor reversible for CCW applications?
No, this specific model is a fixed CW rotation motor. Technicians should verify the fan blade pitch and original motor rotation before completing the replacement.
Can I use this to replace a ball bearing motor?
Yes, provided the 1/8 HP, 208-230Vac, and 1110 RPM specs match. The sleeve bearing is ideal for standard vertical shaft-up or shaft-down condenser fan applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
