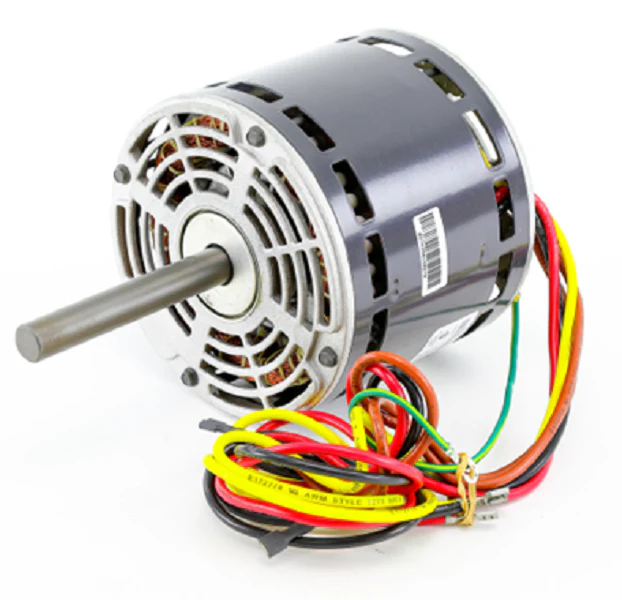

Heil Quaker ICP 1060196 Motor
For mid-static pressure applications in Heil, Tempstar, and Comfortmaker air handlers, the Heil Quaker ICP 1060196 Motor serves as a critical direct drive blower motor replacement. Operating at 208-230Vac, this 1/2 HP PSC motor features a dual-speed configuration capable of maintaining 1020 RPM for consistent airflow. Built on a NEMA 48 frame with a 48Y designation, it employs a 5/8-inch double-sided flat shaft and sleeve bearings internally lubricated for standard vertical or horizontal air-over duty. The counterclockwise (CCW) rotation and permanent split capacitor design require a 10 MFD at 370 VAC capacitor to ensure efficient starting torque and thermal protection during continuous operation. As a genuine OEM HVAC replacement motor, it maintains factory performance curves and mounting compatibility via the standard band mount setup, essential for restoring system static pressure and furnace blower efficiency in 4-ton and 5-ton residential units.
- Enhanced Compatibility: Direct fit for ICP, Heil, and KeepRite residential furnace and air handler assemblies.
- Dual-Speed Versatility: Supports high-efficiency cooling and heating stages with 2-speed flexibility.
- Precision Shaft Design: Features a 5/8" diameter x 4" length double-sided shaft for secure blower wheel attachment.
- Reliable Construction: 48 frame size with sleeve bearings designed for air-over (AO) continuous cooling.
Common Questions
What capacitor is required for the ICP 1060196?
This motor requires a 10 MFD / 370 VAC run capacitor for proper startup and performance. Always replace the capacitor when installing a new motor to prevent premature winding failure.
Can this motor replace a 115V blower motor?
No. This unit is rated specifically for 208-230V single-phase power. Applying 115V will cause the motor to fail to start or overheat, while higher voltages will damage the internal windings.
Does this motor include the mounting band?
This is the motor only. It is designed for a standard 48-frame band mount; you should reuse your existing mounting bracket or "belly band" if it is in good condition.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
