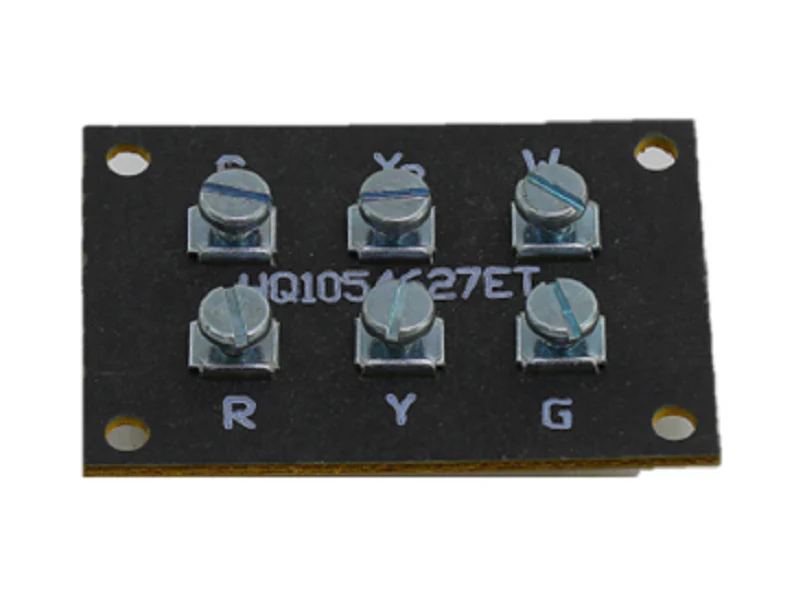

Heil Quaker ICP 1054627 Terminal Board
The Heil Quaker ICP 1054627 Terminal Board is a critical OEM HVAC replacement part designed for precision circuit routing within International Comfort Products (ICP) residential and commercial units. This terminal board facilitates stable 24V low-voltage connections between the thermostat, furnace control board, and peripheral components such as the compressor contactor and indoor blower relay. Engineered for exact fitment in brands like Heil, Comfortmaker, Arcoaire, and Tempstar, it ensures signal integrity for multi-stage cooling and heating sequences, including Y1, G, and W signal paths.
When performing a HVAC terminal board replacement, technicians should verify the specific pinouts against the ICP wiring diagram of the existing air handler or package unit. The 1054627 is common in high-tonnage package systems and designated split system models, acting as the primary junction for field-installed accessories and economizer options. Its durable construction prevents common failure points like cracked solder joints or loose wire connections that often lead to intermittent system cycling or non-responsive cooling calls.
- Precision OEM Compatibility: Direct replacement for Heil Quaker part 1054627 across multiple ICP brand families.
- Enhanced Signal Reliability: Maintains steady 24V communication for compressor contactor and blower motor activation.
- Simplified Field Wiring: Standardized terminal markings (R, C, Y, G, W) allow for rapid HVAC troubleshooting and installation.
- Commercial Grade Build: Designed to withstand the high-vibration environment of commercial rooftop units and heavy-duty air handlers.
Common Questions
How do I confirm if the 1054627 is the correct board for my unit?
Always cross-reference the part number with your unit's model and serial number on the nameplate. This board is frequently used in PGME, PGA, and PGB series units, but technical specs can vary by revision.
Can I repair burnt pins on the original board instead of replacing it?
Technicians recommend complete replacement of the board if any terminals show signs of carbon tracking or overheating. Attempting to repair individual traces can compromise the low-voltage circuit and lead to secondary failures in the transformer or control module.
Does this board support multi-speed fan control?
Yes, it acts as the interface for the 24V signals that trigger fan relays, though actual speed selection (High, Medium, Low) is typically handled via the motor leads or the primary integrated furnace control.
