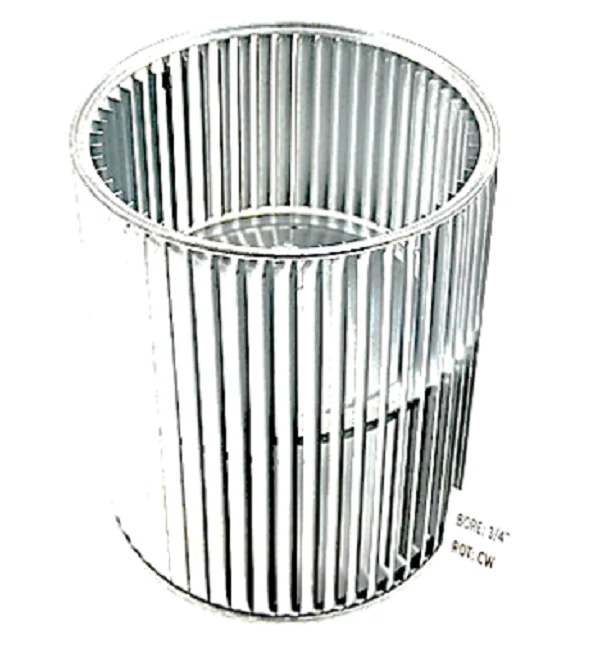

Heil Quaker ICP 1054596 Blower Wheel
The Heil Quaker ICP 1054596 Blower Wheel is a precision-engineered 11x11 centrifugal blower fan designed for high-static pressure applications in residential and light commercial HVAC units. This double inlet blower wheel features a 3/4 inch bore and a reverse rotation configuration, ensuring optimal airflow and heat exchange efficiency. Built with staggered convex fins and a reinforced center hub, the 1054596 is a direct replacement for various International Comfort Products (ICP), Heil, Tempstar, and Comfortmaker furnaces and air handlers. Its galvanized steel construction resists corrosion and maintains structural integrity under high RPMs, reducing vibration and mechanical wear on the blower motor. When performing a HVAC blower wheel replacement, verifying the 11 x 11 x 3/4 dimensions and rotation is critical for maintaining the programmed CFM output of the system. This OEM component ensures a precise balance, preventing the common harmonic resonance issues associated with universal aftermarket alternatives.
Technical Specifications and Benefits- Direct OEM Replacement: Engineered specifically for ICP brands including Heil, Quaker, and Tempstar to ensure exact fitment.
- Optimized Airflow: The 11-inch diameter and 11-inch width provide the necessary volume for high-efficiency furnace blowers.
- Durable Construction: Heavy-gauge galvanized steel blades are individualy crimped to the housing for maximum rigidity.
- Vibration Reduction: Factory-balanced assembly minimizes shaft runout and extends the service life of the motor bearings.
- Bore Size: Precision-machined 3/4" bore with set-screw attachment for secure mounting on the motor shaft.
Is the ICP 1054596 rotation reversible?
No, this specific model is a fixed reverse rotation blower wheel. Always check the original fan's blade orientation before installation to ensure the air is being pulled and thrown correctly into the plenum.
What causes an 11x11 blower wheel to fail?
Failure is typically caused by significant dust accumulation (imbalance), catastrophic motor bearing failure, or moisture causing oxidation. If you notice "oil canning" or bent fins, the wheel must be replaced to prevent motor burnout.
Will this wheel fit a 1/2 inch motor shaft?
No, this wheel is designed for a 3/4 inch shaft. If your motor has a smaller diameter shaft, you will require a different part number or a matched reducer bushing, though a direct-fit wheel is always recommended for high-torque applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
