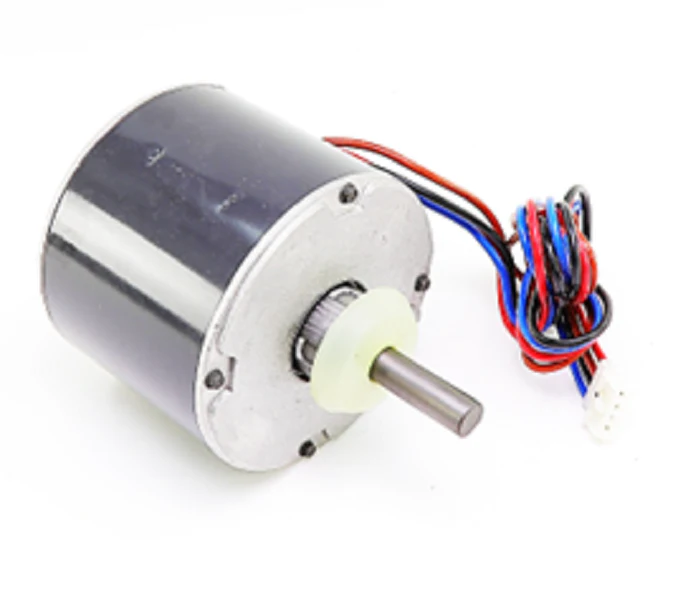

Heil Quaker ICP 1050906 Motor
The Heil Quaker ICP 1050906 Motor is a high-performance, OEM condenser fan motor designed specifically for ICP, Heil, Tempstar, and Arcoaire condensing units. This 1/4 HP replacement motor operates on a 208-230Vac single-phase power supply at a low-speed 840 RPM, providing efficient heat dissipation for residential and light commercial HVAC systems. Built with a 48 NEMA frame size and a robust sleeve bearing system, this PSC (Permanent Split Capacitor) motor supports 2-speed operation and features a CW rotation from the lead end. Designed for band mount installations, it maintains a steady 1.5 Amp draw under load. This specific condenser motor is a direct replacement for ICP part number 1050906 and is often found in AJ048GA1 series units. Using an authentic HVAC blower motor ensure electrical compatibility and maintains the original airflow profile of your equipment.
Key Benefits- Dual-Speed Logic: Supports 2-speed system configurations for improved seasonal energy efficiency and noise reduction.
- OEM Compatibility: Precision-fit for ICP family brands including Heil, Tempstar, and Comfortmaker, eliminating the need for bracket modifications.
- Reliable PSC Design: The Permanent Split Capacitor configuration provides a high starting torque and consistent performance during peak summer demands.
- Optimized Cooling: The 840 RPM rating is specifically tuned for large-surface-area condenser coils to maximize heat transfer.
What capacitor is required for this motor?
Most 1050906 motor applications utilize a 7.5 MFD / 370V run capacitor. Always verify the rating on the existing motor label before installation.
Can I use this to replace a 1075 RPM motor?
No. Using an 840 RPM motor in place of a 1075 RPM motor will significantly reduce airflow, leading to high head pressure and potential compressor failure.
Is this motor reversible?
This specific model is a CW rotation motor. Ensure your fan blade pitch is compatible with clockwise rotation to maintain proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $395.31
-65%$395.31
$138.36Heil Quaker ICP 1050906 Motor
The Heil Quaker ICP 1050906 Motor is a high-performance, OEM condenser fan motor designed specifically for ICP, Heil, Tempstar, and Arcoaire condensing units. This 1/4 HP replacement motor operates on a 208-230Vac single-phase power supply at a low-speed 840 RPM, providing efficient heat dissipation for residential and light commercial HVAC systems. Built with a 48 NEMA frame size and a robust sleeve bearing system, this PSC (Permanent Split Capacitor) motor supports 2-speed operation and features a CW rotation from the lead end. Designed for band mount installations, it maintains a steady 1.5 Amp draw under load. This specific condenser motor is a direct replacement for ICP part number 1050906 and is often found in AJ048GA1 series units. Using an authentic HVAC blower motor ensure electrical compatibility and maintains the original airflow profile of your equipment.
Key Benefits- Dual-Speed Logic: Supports 2-speed system configurations for improved seasonal energy efficiency and noise reduction.
- OEM Compatibility: Precision-fit for ICP family brands including Heil, Tempstar, and Comfortmaker, eliminating the need for bracket modifications.
- Reliable PSC Design: The Permanent Split Capacitor configuration provides a high starting torque and consistent performance during peak summer demands.
- Optimized Cooling: The 840 RPM rating is specifically tuned for large-surface-area condenser coils to maximize heat transfer.
What capacitor is required for this motor?
Most 1050906 motor applications utilize a 7.5 MFD / 370V run capacitor. Always verify the rating on the existing motor label before installation.
Can I use this to replace a 1075 RPM motor?
No. Using an 840 RPM motor in place of a 1075 RPM motor will significantly reduce airflow, leading to high head pressure and potential compressor failure.
Is this motor reversible?
This specific model is a CW rotation motor. Ensure your fan blade pitch is compatible with clockwise rotation to maintain proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
