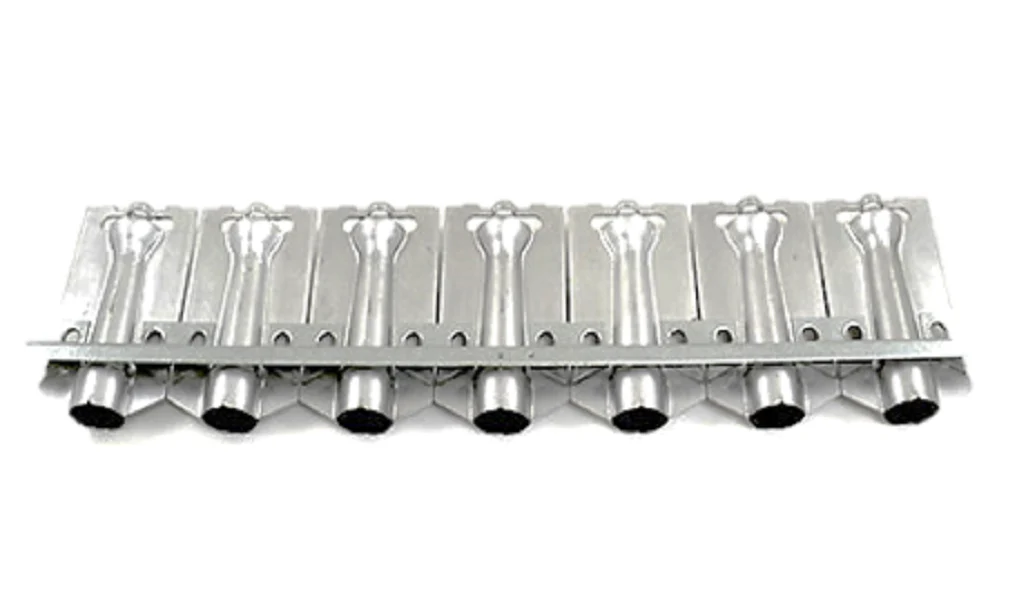

Heil Quaker ICP 1009180 Burner Assembly
As a veteran tech, you know that keeping a gas furnace running at peak efficiency starts with the combustion quality. The Heil Quaker ICP 1009180 Burner Assembly is the exact OEM 7-section inshot burner required for high-efficiency ICP, Heil, and Tempstar gas furnaces. Over time, original burners can suffer from heavy oxidation or "spidering" in the venturi, which disrupts the gas-to-air mixture and leads to lazy, yellow flames or problematic rollout. Replacing the entire 7-sect burner assembly ensures a crisp, blue flame and consistent ignition across all ports.
This ICP 1009180 burner replacement is specifically engineered for models like the G4P060A3F1 and GPF090H16AB, where precise alignment with the heat exchanger inlets is critical. Constructed from heat-resistant aluminized steel, this 7-tube burner assembly resists thermal fatigue and provides the balanced pressure drop needed for steady combustion. When doing a teardown, don't waste time trying to clean heavily pitted tubes; swapping in this OEM furnace burner is the standard protocol for a reliable, "one-and-done" service call.
Key Benefits for Technicians
- Precision Flame Alignment: The 7-section design is factory-set to ensure the flame remains centered in the heat exchanger, preventing premature stress cracks.
- Direct OEM Compatibility: Eliminates the guesswork and "universal fit" headaches; this is a drop-in ICP 1009180 replacement for Heil Quaker systems.
- Enhanced Combustion: Provides uniform gas distribution across all 7 tubes for a clean burn and reduced carbon monoxide production.
- Heavy-Duty Construction: Built with robust, high-grade steel to handle the high-cycle demands of residential heating.
Common Questions
Will this 7-section burner solve a flame rollout issue?
If your rollout switch is tripping due to clogged burner ports or poor crossover between sections, this Heil Quaker 1009180 assembly will restore proper flame travel. However, always inspect the heat exchanger for cracks while the burner tray is out.
Is the ICP 1009180 compatible with propane (LP) units?
Yes, but remember that the burner tubes themselves are the same; you must ensure the correct LP orifices are installed and use the proper gas valve manifold pressure for the conversion.
Does this assembly include the gas orifices?
This is the burner assembly 1009180 itself. In most cases, you will transfer your existing orifices or install new ones matched to the specific BTU rating and gas type of the furnace.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $208.03
-65%$208.03
$72.81Heil Quaker ICP 1009180 Burner Assembly
As a veteran tech, you know that keeping a gas furnace running at peak efficiency starts with the combustion quality. The Heil Quaker ICP 1009180 Burner Assembly is the exact OEM 7-section inshot burner required for high-efficiency ICP, Heil, and Tempstar gas furnaces. Over time, original burners can suffer from heavy oxidation or "spidering" in the venturi, which disrupts the gas-to-air mixture and leads to lazy, yellow flames or problematic rollout. Replacing the entire 7-sect burner assembly ensures a crisp, blue flame and consistent ignition across all ports.
This ICP 1009180 burner replacement is specifically engineered for models like the G4P060A3F1 and GPF090H16AB, where precise alignment with the heat exchanger inlets is critical. Constructed from heat-resistant aluminized steel, this 7-tube burner assembly resists thermal fatigue and provides the balanced pressure drop needed for steady combustion. When doing a teardown, don't waste time trying to clean heavily pitted tubes; swapping in this OEM furnace burner is the standard protocol for a reliable, "one-and-done" service call.
Key Benefits for Technicians
- Precision Flame Alignment: The 7-section design is factory-set to ensure the flame remains centered in the heat exchanger, preventing premature stress cracks.
- Direct OEM Compatibility: Eliminates the guesswork and "universal fit" headaches; this is a drop-in ICP 1009180 replacement for Heil Quaker systems.
- Enhanced Combustion: Provides uniform gas distribution across all 7 tubes for a clean burn and reduced carbon monoxide production.
- Heavy-Duty Construction: Built with robust, high-grade steel to handle the high-cycle demands of residential heating.
Common Questions
Will this 7-section burner solve a flame rollout issue?
If your rollout switch is tripping due to clogged burner ports or poor crossover between sections, this Heil Quaker 1009180 assembly will restore proper flame travel. However, always inspect the heat exchanger for cracks while the burner tray is out.
Is the ICP 1009180 compatible with propane (LP) units?
Yes, but remember that the burner tubes themselves are the same; you must ensure the correct LP orifices are installed and use the proper gas valve manifold pressure for the conversion.
Does this assembly include the gas orifices?
This is the burner assembly 1009180 itself. In most cases, you will transfer your existing orifices or install new ones matched to the specific BTU rating and gas type of the furnace.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
