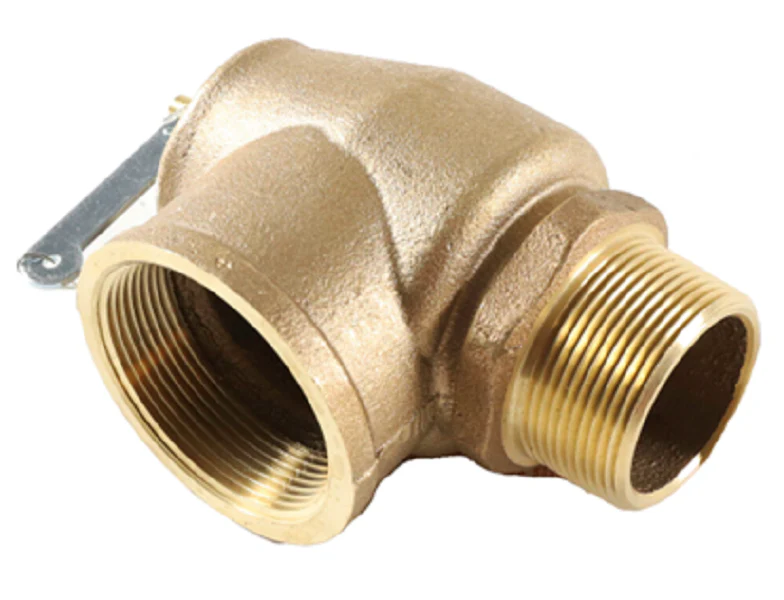

Fulton Boiler 2-30-000086 Valve
The Fulton Boiler 2-30-000086 is a heavy-duty steam safety relief valve designed for integration with high-performance boiler systems requiring precise pressure management. Featuring a 1.5-inch NPT inlet and a 2-inch NPT outlet, this valve is engineered to provide a discharge capacity of 1900 PPH (pounds per hour). It is factory-set for 15 PSI steam applications, ensuring critical overpressure protection for commercial and industrial heat transfer systems. Constructed with a robust brass or bronze body to resist corrosion, this ASME Section IV compliant component handles thermal expansion and prevents vessel failure. For contractors managing Fulton vertical tubeless boilers, this valve ensures low-pressure steam safety and maintains system integrity under continuous operational load. Correct orientation and sizing are essential to meet HVAC safety standards and prevent high-velocity steam backpressure during venting cycles.
Key Benefits
- Precision Relief Capacity: Rated for 1900 PPH at a 15# set point to ensure rapid evacuation in overpressure events.
- Standard Connection Sizes: Features a 1.5x2 inch NPT configuration for direct compatibility with standard Fulton boiler manifolds.
- Durable Construction: High-grade metallic housing resists scale buildup and maintains seat alignment for a leak-free seal after thermal cycling.
- Regulatory Alignment: Designed to meet stringent safety relief valve requirements for low-pressure steam heating systems.
Common Questions
What is the orientation requirement for the Fulton 2-30-000086?
This steam relief valve must be installed in a vertical upright position with the spindle aligned vertically to ensure the weighted or spring-loaded mechanism functions appropriately during discharge.
Can this valve be used for water or air applications?
This specific model is calibrated and optimized for steam service only. For liquid or compressed air systems, a valve with a different orifice coefficient and trim material should be selected to match the fluid dynamics of the medium.
How do I verify the capacity for my specific Fulton boiler model?
Always match the PPH discharge rating on the valve nameplate with the BTU output or steam production rate of your boiler to ensure the valve can handle the full capacity of the steam generator.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
