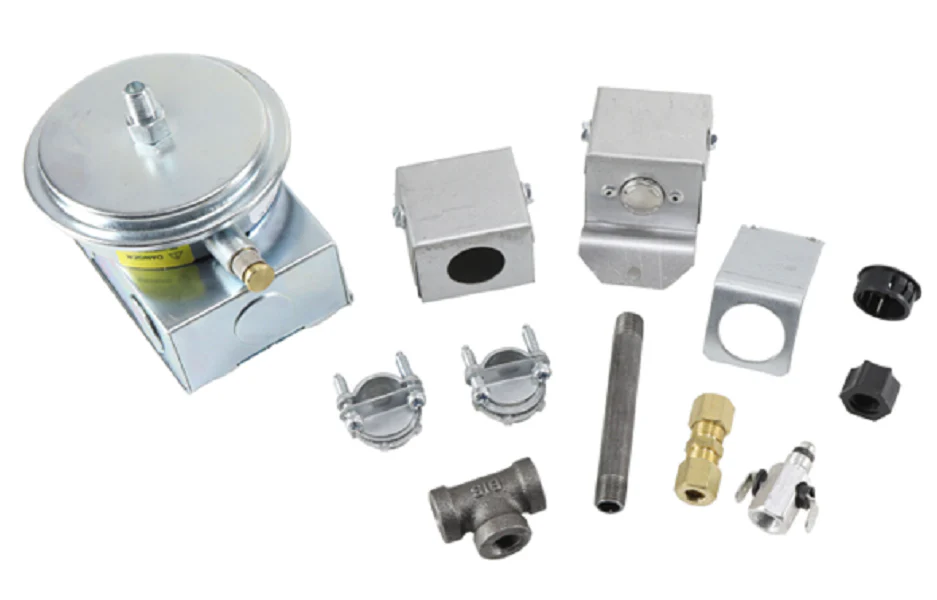

Field Controls 46473601 Control Kit
The Field Controls 46473601 (Model CK-92FVP) is a specialized draft hood system control kit engineered for the simultaneous operation of SWG series power venters on 24Vac gas-fired furnaces or boilers and 30mV standing pilot water heaters. This kit is essential for contractors managing co-venting installations, ensuring that the power venter motor activates correctly when either the space-heating appliance calls for heat or the water heater’s gas pressure switch detects burner operation. By utilizing a 24V plug-in design, the CK-92FVP integrates seamlessly with appliances equipped with an automatic vent damper, providing a synchronized safety interlocking system. The inclusion of a fixed post purge timer allows for the thorough evacuation of residual combustion gases after the heating cycle concludes, effectively preventing flue gas spillage. This kit features a robust draft proving switch and a secondary safety switch (TCA-1 thermocouple adapter) to maintain a safe environment. Designed for natural gas or LP gas applications, this HVAC draft inducer control provides precise mechanical draft management to meet code requirements for sidewall venting.
Key Benefits- Dual-Appliance Compatibility: Specifically designed to manage a 24V gas valve heating system and a 30mV millivolt water heater on a single power venter.
- Enhanced Safety: Includes GSK-3 spillage switches and a TCA-1 thermocouple adapter to prevent operation during venting failures.
- Fixed Post Purge Logic: Features a non-adjustable post-purge cycle that ensures the venter runs long enough to clear the flue of all combustion products.
- Reliable Pressure Sensing: The integrated diaphragm pressure switch and gas pressure switch provide redundant verification of safe airflow before ignition.
- Can this kit be used with a 750mV power-pile system? No, the CK-92FVP is specifically for 24Vac gas-fired draft inducer furnaces or boilers and 30mV water heaters. For 750mV systems, a different control kit model like the CK-81 is required.
- Does this include the draft control? This kit is designed for draft hood systems. If your configuration requires a barometric draft control, a Field Controls MG-1 should be used in conjunction with the power venter.
- Is a professional required for installation? Yes, this control kit must be installed by a qualified HVAC technician to ensure proper wiring of the 120V line voltage and the low-voltage safety circuits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $429.82
-65%$429.82
$150.44Field Controls 46473601 Control Kit
The Field Controls 46473601 (Model CK-92FVP) is a specialized draft hood system control kit engineered for the simultaneous operation of SWG series power venters on 24Vac gas-fired furnaces or boilers and 30mV standing pilot water heaters. This kit is essential for contractors managing co-venting installations, ensuring that the power venter motor activates correctly when either the space-heating appliance calls for heat or the water heater’s gas pressure switch detects burner operation. By utilizing a 24V plug-in design, the CK-92FVP integrates seamlessly with appliances equipped with an automatic vent damper, providing a synchronized safety interlocking system. The inclusion of a fixed post purge timer allows for the thorough evacuation of residual combustion gases after the heating cycle concludes, effectively preventing flue gas spillage. This kit features a robust draft proving switch and a secondary safety switch (TCA-1 thermocouple adapter) to maintain a safe environment. Designed for natural gas or LP gas applications, this HVAC draft inducer control provides precise mechanical draft management to meet code requirements for sidewall venting.
Key Benefits- Dual-Appliance Compatibility: Specifically designed to manage a 24V gas valve heating system and a 30mV millivolt water heater on a single power venter.
- Enhanced Safety: Includes GSK-3 spillage switches and a TCA-1 thermocouple adapter to prevent operation during venting failures.
- Fixed Post Purge Logic: Features a non-adjustable post-purge cycle that ensures the venter runs long enough to clear the flue of all combustion products.
- Reliable Pressure Sensing: The integrated diaphragm pressure switch and gas pressure switch provide redundant verification of safe airflow before ignition.
- Can this kit be used with a 750mV power-pile system? No, the CK-92FVP is specifically for 24Vac gas-fired draft inducer furnaces or boilers and 30mV water heaters. For 750mV systems, a different control kit model like the CK-81 is required.
- Does this include the draft control? This kit is designed for draft hood systems. If your configuration requires a barometric draft control, a Field Controls MG-1 should be used in conjunction with the power venter.
- Is a professional required for installation? Yes, this control kit must be installed by a qualified HVAC technician to ensure proper wiring of the 120V line voltage and the low-voltage safety circuits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
