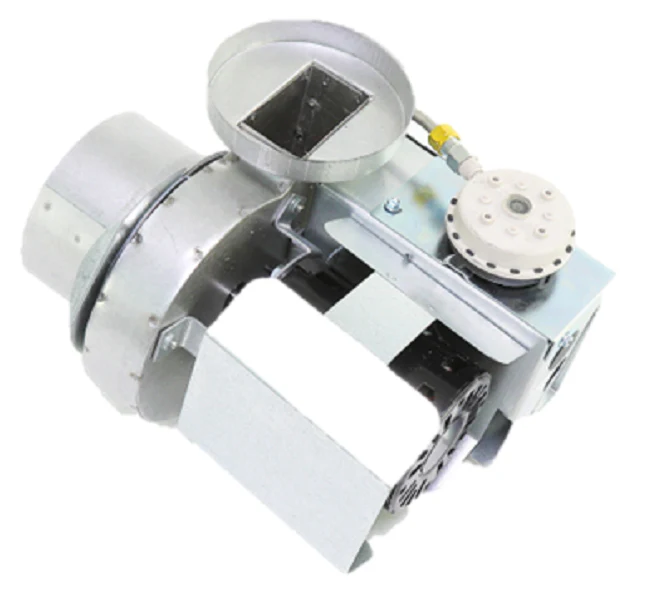

Field Controls 46245701 Power Venter
The Field Controls 46245701, model PVG-100, is a high-performance sidewall power venter engineered for 24 VAC controlled gas-fired furnaces, boilers, and water heaters. Designed specifically for gas applications, this 115V AC unit features a 4" inlet and serves as a reliable solution for venting single residential or light commercial appliances where traditional chimneys are impractical or unavailable. With a robust 3000 RPM motor and integrated thermal protection, the PVG-100 maintains 100% negative pressure in the vent pipe, allowing for the use of standard galvanized vent pipe instead of more expensive stainless steel alternatives.
This power venter system incorporates a built-in pressure switch to ensure sufficient airflow before allowing the burner to ignite, maximizing operation safety. The integrated relay/timer handles the post-purge cycle, actively clearing residual combustion gases after the heating cycle concludes. Technicians will find the PVG-100 a versatile replacement for older Tjernlund HSUL-1 or HST-1 models, offering simplified HVAC draft control and a compact 10-pound footprint that supports both horizontal and vertical mounting orientations.
Key Benefits- Cost-Effective Venting: Operates under negative pressure, eliminating the need for expensive sealed joints or stainless steel vent lines.
- Integrated Controls: Features a built-in 24 VAC relay, pressure switch, and post-purge timer for simplified field wiring.
- Operational Safety: Prevents burner ignition unless the draft is fully established and proven by the internal pressure switch.
- High Compatibility: Suitable for use with natural or LP gas systems, including co-venting applications with 30 millivolt water heaters.
Can the PVG-100 be used for oil-fired appliances? No, this model is strictly rated for gas-fired appliances. For oil applications, a Field Controls PVO or PVU series unit should be specified.
Does the unit include a vent hood? The 46245701 is the power venter unit alone. A compatible 4" vent hood is required for external termination to complete the installation.
What is the maximum BTU capacity for this model? The PVG-100 is typically sized based on the total equivalent length of the vent pipe and the appliance input. Technicians should consult the Field Controls sizing tables to ensure the 4" inlet meets the specific BTU/hr requirements of the system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $465.19
-65%$465.19
$162.82Field Controls 46245701 Power Venter
