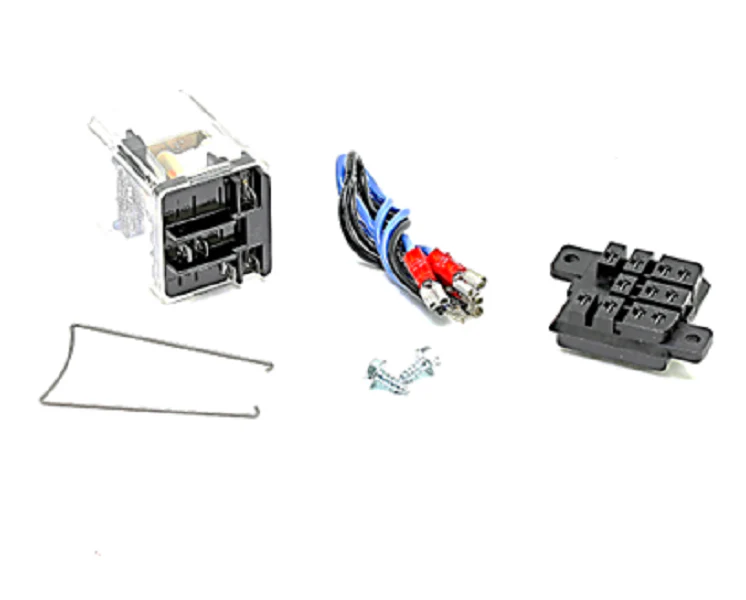

Field Controls 46080200 Relay
The Field Controls 46080200 Relay is a specialized 24Vac SPDT replacement relay designed for precise switching in combustion air and draft control systems. Engineered for service longevity, this Field Controls relay serves as the direct OEM replacement component for CK-40, CK-41, CK-90, and CAC-24 kits. As a Single Pole Double Throw (SPDT) device, it provides the necessary logic to interface between the thermostat and the draft inducer motor or vent damper, ensuring proper sequencing for safety and efficiency. This HVAC control relay features a 24V coil voltage and is essential for resolving intermittent failures in combustion air kits. When troubleshooting Field Controls 46080200 installations, contractors should verify coil resistance and contact continuity to ensure reliable signal routing. Maintaining these 24Vac relays is critical for high-performance forced air and boiler systems utilizing Field Controls draft management hardware.
Key Benefits:
- Direct OEM Compatibility: Specifically engineered for seamless integration with CK-series kits and CAC-24 systems.
- Standardized SPDT Logic: Provides versatile switching capabilities for both normally open and normally closed circuit requirements.
- Durable Coil Construction: Designed to withstand the thermal cycles and electrical demands of professional HVACR environments.
- Simplified Installation: Standard terminal configuration allows for rapid field replacement, reducing labor time during service calls.
Common Questions:
How do I test the Field Controls 46080200 in the field?
Using a multimeter, verify that 24Vac is reaching the coil terminals. With the power disconnected, check continuity across the common and normally closed terminals, then energize the coil to confirm the switch flips to the normally open side.
Will this relay work for systems other than the CK-40 or CK-90?
While designed primarily for CK-40, CK-41, CK-90, and CAC-24, this 24Vac SPDT relay fits any application requiring these specific electrical specifications and physical mounting footprints.
What are the signs of a failing combustion air relay?
Common indicators include the draft inducer failing to kick on when the thermostat calls for heat, or the relay "chattering" due to pitted internal contacts or inadequate coil voltage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $132.15
-65%$132.15
$46.25Field Controls 46080200 Relay
The Field Controls 46080200 Relay is a specialized 24Vac SPDT replacement relay designed for precise switching in combustion air and draft control systems. Engineered for service longevity, this Field Controls relay serves as the direct OEM replacement component for CK-40, CK-41, CK-90, and CAC-24 kits. As a Single Pole Double Throw (SPDT) device, it provides the necessary logic to interface between the thermostat and the draft inducer motor or vent damper, ensuring proper sequencing for safety and efficiency. This HVAC control relay features a 24V coil voltage and is essential for resolving intermittent failures in combustion air kits. When troubleshooting Field Controls 46080200 installations, contractors should verify coil resistance and contact continuity to ensure reliable signal routing. Maintaining these 24Vac relays is critical for high-performance forced air and boiler systems utilizing Field Controls draft management hardware.
Key Benefits:
- Direct OEM Compatibility: Specifically engineered for seamless integration with CK-series kits and CAC-24 systems.
- Standardized SPDT Logic: Provides versatile switching capabilities for both normally open and normally closed circuit requirements.
- Durable Coil Construction: Designed to withstand the thermal cycles and electrical demands of professional HVACR environments.
- Simplified Installation: Standard terminal configuration allows for rapid field replacement, reducing labor time during service calls.
Common Questions:
How do I test the Field Controls 46080200 in the field?
Using a multimeter, verify that 24Vac is reaching the coil terminals. With the power disconnected, check continuity across the common and normally closed terminals, then energize the coil to confirm the switch flips to the normally open side.
Will this relay work for systems other than the CK-40 or CK-90?
While designed primarily for CK-40, CK-41, CK-90, and CAC-24, this 24Vac SPDT relay fits any application requiring these specific electrical specifications and physical mounting footprints.
What are the signs of a failing combustion air relay?
Common indicators include the draft inducer failing to kick on when the thermostat calls for heat, or the relay "chattering" due to pitted internal contacts or inadequate coil voltage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
