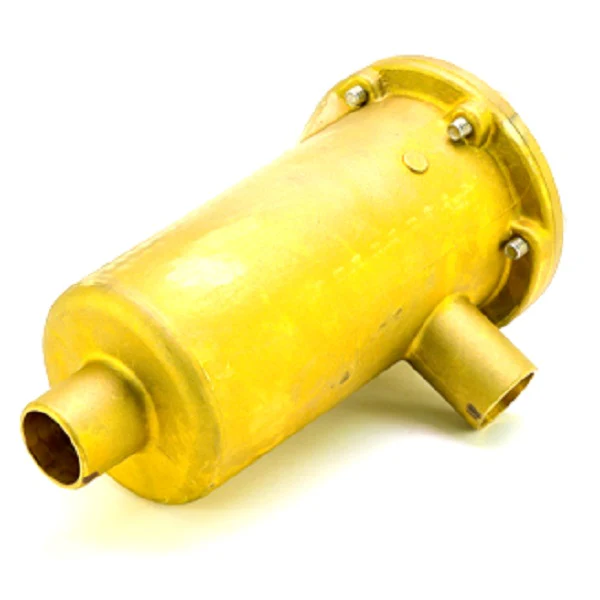

Emerson Alco 064169 Filter Drier Shell
The Emerson Alco 064169, also identified as the BTAS-411S-V, is a high-capacity brass take-a-part suction line filter drier shell designed for heavy-duty commercial refrigeration and air conditioning systems. Engineered for maximum debris removal, this shell features 1 3/8" ODF sweat connections and is compatible with suction line filter drier cores to protect compressors from burnout contaminants and moisture. With a 400 PSI maximum working pressure and a 4-inch shell diameter, this replaceable core filter drier provides low pressure drop performance, essential for maintaining system efficiency. The BTAS411SV utilizes a 40 micron filtration rating to capture fine particulates that could cause mechanical failure. Its brass construction ensures corrosion resistance in demanding environments, while the take-a-part design allows for rapid internal inspections and core replacements during routine maintenance. This shell is a reliable solution for contractors managing large-scale HVACR system protection and liquid line clean-up applications.
Technical Specifications and Benefits- 1 3/8" ODF Sweat Connections: Ensures secure, leak-free brazing into standard suction lines.
- Full Flow Design: Optimized internal geometry minimizes pressure drop to prevent capacity loss.
- Corrosion-Resistant Brass Body: Built for durability in high-moisture environments.
- Serviceability: The bolt-on flange design allows for quick core changes without cutting the refrigerant lines.
- 400 PSI Rating: Suitable for a wide range of common refrigerants and high-pressure system requirements.
What cores are compatible with the BTAS-411S-V?
This shell is designed to house standard 48 cubic inch cores, such as the Emerson D-48 or H-48, depending on whether you are prioritizing moisture removal or acid cleanup after a compressor burnout.
Can this shell be installed in any orientation?
For optimal oil return and debris trapping, it is recommended to install the shell in a horizontal position on the suction line, though vertical installation is permissible if flow direction is strictly followed.
What is the primary application for the Emerson 064169?
It is primarily utilized as a suction line filter for protecting the compressor from solid contaminants and moisture, particularly in systems with large cooling capacities where a permanent filter drier would be impractical to replace.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $227.08
-65%$227.08
$79.48Emerson Alco 064169 Filter Drier Shell
The Emerson Alco 064169, also identified as the BTAS-411S-V, is a high-capacity brass take-a-part suction line filter drier shell designed for heavy-duty commercial refrigeration and air conditioning systems. Engineered for maximum debris removal, this shell features 1 3/8" ODF sweat connections and is compatible with suction line filter drier cores to protect compressors from burnout contaminants and moisture. With a 400 PSI maximum working pressure and a 4-inch shell diameter, this replaceable core filter drier provides low pressure drop performance, essential for maintaining system efficiency. The BTAS411SV utilizes a 40 micron filtration rating to capture fine particulates that could cause mechanical failure. Its brass construction ensures corrosion resistance in demanding environments, while the take-a-part design allows for rapid internal inspections and core replacements during routine maintenance. This shell is a reliable solution for contractors managing large-scale HVACR system protection and liquid line clean-up applications.
Technical Specifications and Benefits- 1 3/8" ODF Sweat Connections: Ensures secure, leak-free brazing into standard suction lines.
- Full Flow Design: Optimized internal geometry minimizes pressure drop to prevent capacity loss.
- Corrosion-Resistant Brass Body: Built for durability in high-moisture environments.
- Serviceability: The bolt-on flange design allows for quick core changes without cutting the refrigerant lines.
- 400 PSI Rating: Suitable for a wide range of common refrigerants and high-pressure system requirements.
What cores are compatible with the BTAS-411S-V?
This shell is designed to house standard 48 cubic inch cores, such as the Emerson D-48 or H-48, depending on whether you are prioritizing moisture removal or acid cleanup after a compressor burnout.
Can this shell be installed in any orientation?
For optimal oil return and debris trapping, it is recommended to install the shell in a horizontal position on the suction line, though vertical installation is permissible if flow direction is strictly followed.
What is the primary application for the Emerson 064169?
It is primarily utilized as a suction line filter for protecting the compressor from solid contaminants and moisture, particularly in systems with large cooling capacities where a permanent filter drier would be impractical to replace.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
