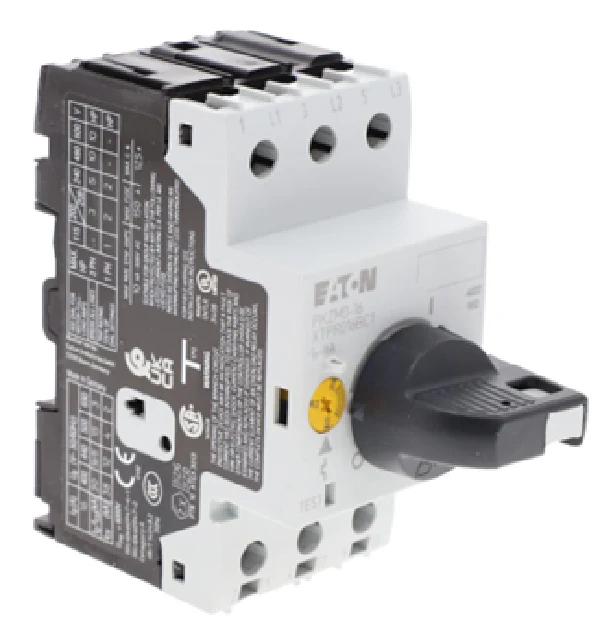

Eaton Cutler-Hammer XTPR016BC1 Motor Protector
The Eaton Cutler-Hammer XTPR016BC1 is a robust manual motor protector designed for precise motor control and protection in industrial and HVACR environments. As an integral component of the Eaton XT Series, this B-Frame rotary unit integrates local signaling, switching, and overload protection into a single 45 mm compact housing. Engineered for efficiency, it features a Class 10 trip characteristic and an adjustable 10-16A thermal-magnetic trip range, ensuring reliable performance for three-phase motor applications. The rotary handle provides clear ON/OFF/TRIP status, allowing technicians to quickly diagnose faults and reset the system. Designed for DIN rail mounting, the XTPR016BC1 offers IP20 finger-safe protection and is compatible with a wide range of XT accessories, including lateral auxiliary contacts and shunt trips. This unit is essential for contractors requiring a high-interrupt capacity manual starter that meets UL 508 and CSA standards for comprehensive branch circuit protection.
Key Benefits- Enhanced Safety: Built-in phase loss sensitivity and fixed magnetic short-circuit trip elements protect motor windings from terminal damage.
- Space-Efficient Design: The 45 mm B-Frame architecture saves valuable cabinet space while supporting motors up to 16 FLA.
- Operational Clarity: The rotary handle includes a lockout provision and visible trip indication for secure maintenance and rapid troubleshooting.
- Versatile Application: Suitable for multi-motor installations and branch circuit protection in both commercial and industrial settings.
- Simplified Installation: Standard screw connection terminals and DIN rail compatibility reduce commissioning time for field technicians.
What is the maximum FLA rating for the XTPR016BC1?
This specific model is calibrated for a full load amperage (FLA) range of 10-16A, making it ideal for motors within that current rating profile.
Does this unit support phase loss protection?
Yes, the Eaton XTPR016BC1 includes phase loss sensitivity to prevent motor burnout in the event of a single-phasing condition.
Can I add auxiliary contacts to this motor protector?
Absolutely. The XT Series is highly modular, allowing for the addition of front or side-mounted auxiliary contacts and undervoltage electronic releases.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $145.16
-65%$145.16
$50.81Eaton Cutler-Hammer XTPR016BC1 Motor Protector
The Eaton Cutler-Hammer XTPR016BC1 is a robust manual motor protector designed for precise motor control and protection in industrial and HVACR environments. As an integral component of the Eaton XT Series, this B-Frame rotary unit integrates local signaling, switching, and overload protection into a single 45 mm compact housing. Engineered for efficiency, it features a Class 10 trip characteristic and an adjustable 10-16A thermal-magnetic trip range, ensuring reliable performance for three-phase motor applications. The rotary handle provides clear ON/OFF/TRIP status, allowing technicians to quickly diagnose faults and reset the system. Designed for DIN rail mounting, the XTPR016BC1 offers IP20 finger-safe protection and is compatible with a wide range of XT accessories, including lateral auxiliary contacts and shunt trips. This unit is essential for contractors requiring a high-interrupt capacity manual starter that meets UL 508 and CSA standards for comprehensive branch circuit protection.
Key Benefits- Enhanced Safety: Built-in phase loss sensitivity and fixed magnetic short-circuit trip elements protect motor windings from terminal damage.
- Space-Efficient Design: The 45 mm B-Frame architecture saves valuable cabinet space while supporting motors up to 16 FLA.
- Operational Clarity: The rotary handle includes a lockout provision and visible trip indication for secure maintenance and rapid troubleshooting.
- Versatile Application: Suitable for multi-motor installations and branch circuit protection in both commercial and industrial settings.
- Simplified Installation: Standard screw connection terminals and DIN rail compatibility reduce commissioning time for field technicians.
What is the maximum FLA rating for the XTPR016BC1?
This specific model is calibrated for a full load amperage (FLA) range of 10-16A, making it ideal for motors within that current rating profile.
Does this unit support phase loss protection?
Yes, the Eaton XTPR016BC1 includes phase loss sensitivity to prevent motor burnout in the event of a single-phasing condition.
Can I add auxiliary contacts to this motor protector?
Absolutely. The XT Series is highly modular, allowing for the addition of front or side-mounted auxiliary contacts and undervoltage electronic releases.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
