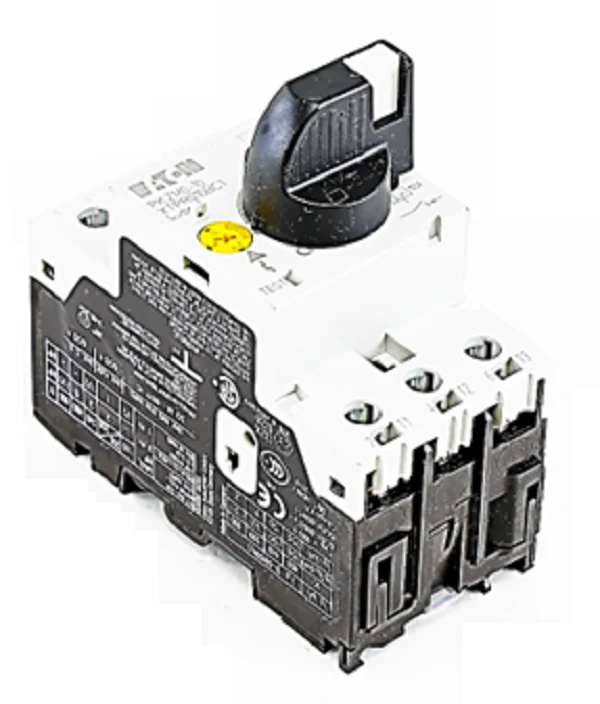

Eaton Cutler-Hammer XTPR010BC1 Motor Protector
The Eaton Cutler-Hammer XTPR010BC1 is a manual motor protector designed for precise overload and short-circuit protection in industrial motor control circuits. Part of the XT Power Control series, this B-frame device features a thermal setting range of 6.3 to 10 Amps, making it a reliable solution for small to medium horsepower applications. Engineered with Type F coordination, the XTPR010BC1 integrates both motor disconnect and branch circuit protection functions into a single DIN rail mountable unit. Its adjustable bimetallic trip mechanism ensures accurate thermal protection against phased imbalance and excessive current draw. For contractors managing HVACR motor starters or industrial pump panels, the Eaton XTPR series provides high interrupting capacity and lockable rotary handles to meet strict safety and UL 508 requirements without requiring additional upstream fuses in many configurations.
Key Benefits- Rotary manual motor controller design provides clear visual status and local disconnecting means.
- Adjustable 6.3-10A current range allows for field-tuning to specific motor nameplate data.
- Phase failure sensitivity protects motors from premature winding failure during single-phasing events.
- Space-saving B-frame saves significant enclosure real estate compared to traditional fuse blocks and contactor setups.
- Tool-free DIN rail mounting streamlines installation in control panels and motor centers.
What is the maximum voltage rating for the XTPR010BC1?
This manual motor starter is designed for 600V AC operation, suitable for standard 208V, 240V, and 480V motor circuits.
Can I add auxiliary contacts to this motor protector?
Yes, the XTPR010BC1 supports both side-mount and front-mount auxiliary contact blocks for signaling and remote monitoring.
Does this unit provide short-circuit protection or just overload?
The XTPR series functions as a combination motor controller, providing both thermal overload protection and magnetic short-circuit protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $142.73
-65%$142.73
$49.96Eaton Cutler-Hammer XTPR010BC1 Motor Protector
The Eaton Cutler-Hammer XTPR010BC1 is a manual motor protector designed for precise overload and short-circuit protection in industrial motor control circuits. Part of the XT Power Control series, this B-frame device features a thermal setting range of 6.3 to 10 Amps, making it a reliable solution for small to medium horsepower applications. Engineered with Type F coordination, the XTPR010BC1 integrates both motor disconnect and branch circuit protection functions into a single DIN rail mountable unit. Its adjustable bimetallic trip mechanism ensures accurate thermal protection against phased imbalance and excessive current draw. For contractors managing HVACR motor starters or industrial pump panels, the Eaton XTPR series provides high interrupting capacity and lockable rotary handles to meet strict safety and UL 508 requirements without requiring additional upstream fuses in many configurations.
Key Benefits- Rotary manual motor controller design provides clear visual status and local disconnecting means.
- Adjustable 6.3-10A current range allows for field-tuning to specific motor nameplate data.
- Phase failure sensitivity protects motors from premature winding failure during single-phasing events.
- Space-saving B-frame saves significant enclosure real estate compared to traditional fuse blocks and contactor setups.
- Tool-free DIN rail mounting streamlines installation in control panels and motor centers.
What is the maximum voltage rating for the XTPR010BC1?
This manual motor starter is designed for 600V AC operation, suitable for standard 208V, 240V, and 480V motor circuits.
Can I add auxiliary contacts to this motor protector?
Yes, the XTPR010BC1 supports both side-mount and front-mount auxiliary contact blocks for signaling and remote monitoring.
Does this unit provide short-circuit protection or just overload?
The XTPR series functions as a combination motor controller, providing both thermal overload protection and magnetic short-circuit protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
