Eaton Cutler-Hammer XTOB024DC1 Overload Relay

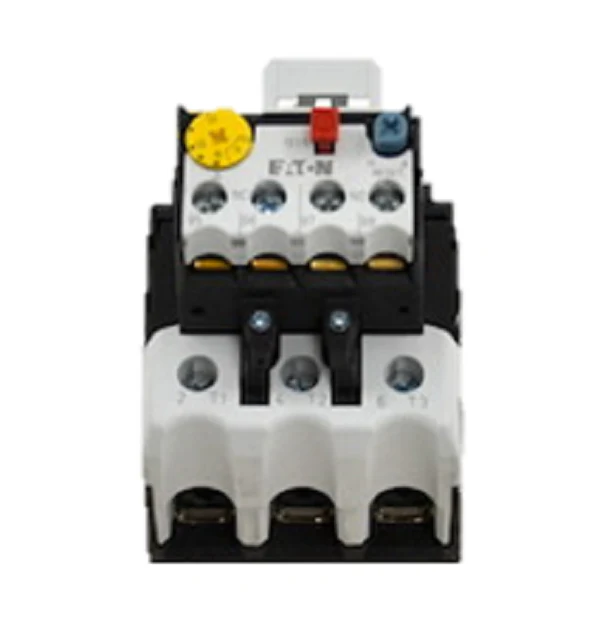

The Eaton Cutler-Hammer XTOB024DC1 is a bimetallic thermal overload relay engineered for precise motor protection within the XT Power Control framework. This IEC-rated component features a current setting range of 16-24A, designed specifically for integration with Frame C contactors (32A to 40A range). Utilizing a Class 10 trip mechanism, the unit provides reliable protection against phase loss and sustained overcurrent conditions that can lead to winding failure. The XTOB024DC1 includes selectable auto/manual reset modes and a built-in status indicator for rapid site diagnostics. Its direct-mount design ensures a secure, vibration-resistant connection to the load side of the contactor, maintaining industrial control integrity in demanding HVACR applications. For technicians managing high-duty cycles, this relay offers fine-tuned thermal protection to prevent nuisance tripping while ensuring NEMA level reliability in a compact DIN rail compatible form factor.
Key Benefits for Contractors- Adjustable Current Range: The 16-24A dial allows for precise motor FLA (Full Load Amps) matching.
- Phase Loss Sensitivity: Advanced bimetallic elements react quickly to unbalanced loads, preventing single-phasing damage.
- Direct Contactor Mounting: Optimized for Eaton Frame C series, reducing enclosure space and wiring complexity.
- Selectable Reset Options: Toggle between manual and automatic reset based on the specific application's safety requirements.
- Auxiliary Contacts: Standard 1NO/1NC auxiliary contacts facilitate seamless integration into control logic circuits.
What is the trip class for the Eaton XTOB024DC1?
This unit is a Class 10 overload relay, meaning it will trip within 10 seconds or less at 600% of the maximum thermal current setting, making it ideal for standard motor starting duty.
Can this relay be used with non-Eaton contactors?
The XTOB024DC1 is designed for direct mounting to Cutler-Hammer XT Series contactors. For stand-alone applications or use with other brands, a separate terminal block adapter (XTOBXDINC) is required for DIN rail mounting.
How does this handle fluctuating ambient temperatures?
It features ambient temperature compensation, ensuring consistent trip characteristics between -25°C and 55°C (-13°F and 131°F) within the mechanical enclosure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
