Eaton Cutler-Hammer XTOB010BC1 Overload

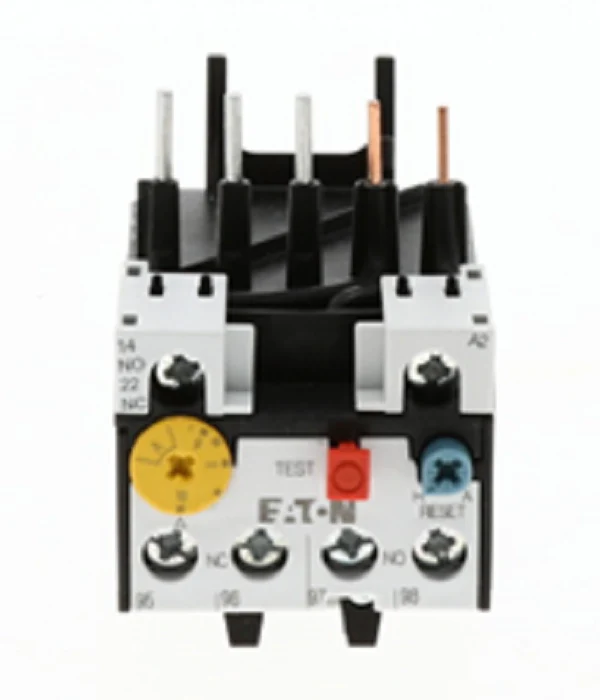

The Eaton Cutler-Hammer XTOB010BC1 is a bimetallic thermal overload relay engineered for precise motor protection within the XT series IEC power control framework. Designed for direct mounting to Frame B contactors, this 3-pole overload features an adjustable current setting range of 6.0 to 10.0 Amps. The unit utilizes a thermal trip mechanism with Class 10 tripping characteristics, providing a reliable defense against phase loss and sustained motor overcurrent conditions. It comes standard with 1NO / 1NC auxiliary contacts for seamless integration into control circuits and signaling applications. With its IP20 finger-safe design and manual/auto reset capability, this component ensures operational stability in demanding HVACR and industrial motor control centers. The XTOB010BC1 IEC overload is built to handle inductive loads while maintaining tight tolerances to prevent nuisance tripping, ensuring your motor operates within safe thermal limits during heavy duty cycles.
Key Technical Benefits- Selectable Reset Modes: Features a configurable manual or automatic reset selector to match specific application safety protocols.
- Ambient Temperature Compensation: Maintains accurate trip curves in fluctuating mechanical room environments, preventing premature motor protection activation.
- Integrated Test Function: Allows contractors to verify auxiliary contact functionality and control circuit integrity without an actual overcurrent event.
- Bimetallic Trip Element: Provides consistent IEC motor thermal protection across all three phases, mitigating the risk of winding burnout.
What is the maximum FLA setting for the XTOB010BC1?
This specific relay covers a Full Load Amp (FLA) range of 6.0 A to 10.0 A. It should be sized based on the motor nameplate rating, not the contactor size.
Can this overload be used for single-phase motor protection?
Yes, however, to prevent phase loss sensitivity tripping, the current path must be looped through all three poles in series.
Does this unit mount to any Eaton contactor?
The XTOB010BC1 is designed specifically for direct mounting to Frame B XTCE contactors. For larger frames or independent mounting, separate terminal blocks may be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $124.89
-65%$124.89
$43.71Eaton Cutler-Hammer XTOB010BC1 Overload
The Eaton Cutler-Hammer XTOB010BC1 is a bimetallic thermal overload relay engineered for precise motor protection within the XT series IEC power control framework. Designed for direct mounting to Frame B contactors, this 3-pole overload features an adjustable current setting range of 6.0 to 10.0 Amps. The unit utilizes a thermal trip mechanism with Class 10 tripping characteristics, providing a reliable defense against phase loss and sustained motor overcurrent conditions. It comes standard with 1NO / 1NC auxiliary contacts for seamless integration into control circuits and signaling applications. With its IP20 finger-safe design and manual/auto reset capability, this component ensures operational stability in demanding HVACR and industrial motor control centers. The XTOB010BC1 IEC overload is built to handle inductive loads while maintaining tight tolerances to prevent nuisance tripping, ensuring your motor operates within safe thermal limits during heavy duty cycles.
Key Technical Benefits- Selectable Reset Modes: Features a configurable manual or automatic reset selector to match specific application safety protocols.
- Ambient Temperature Compensation: Maintains accurate trip curves in fluctuating mechanical room environments, preventing premature motor protection activation.
- Integrated Test Function: Allows contractors to verify auxiliary contact functionality and control circuit integrity without an actual overcurrent event.
- Bimetallic Trip Element: Provides consistent IEC motor thermal protection across all three phases, mitigating the risk of winding burnout.
What is the maximum FLA setting for the XTOB010BC1?
This specific relay covers a Full Load Amp (FLA) range of 6.0 A to 10.0 A. It should be sized based on the motor nameplate rating, not the contactor size.
Can this overload be used for single-phase motor protection?
Yes, however, to prevent phase loss sensitivity tripping, the current path must be looped through all three poles in series.
Does this unit mount to any Eaton contactor?
The XTOB010BC1 is designed specifically for direct mounting to Frame B XTCE contactors. For larger frames or independent mounting, separate terminal blocks may be required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
