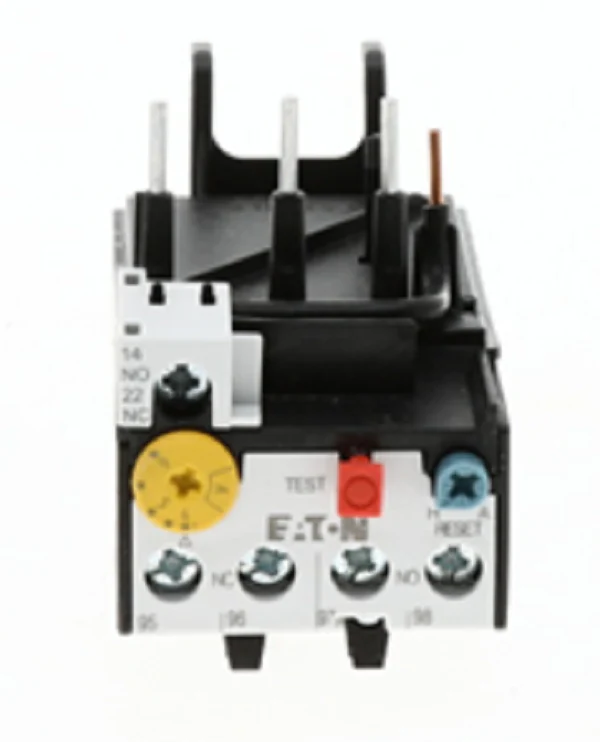

Eaton Cutler-Hammer XTOB006CC1 Overload Relay
The Eaton Cutler-Hammer XTOB006CC1 is a bimetallic IEC overload relay engineered for precise motor protection in industrial HVACR and control applications. Designed specifically for Frame C contactors, this 3-pole thermal overload features an adjustable current range of 4-6A. It provides reliable 10A trip class performance, ensuring a rapid response to overcurrent conditions to prevent winding damage. Built for seamless integration, the XTOB006CC1 offers direct mounting to XTCE018C, XTCE025C, and XTCE032C contactors, significantly reducing panel space requirements and installation labor. This unit includes phase failure sensitivity and ambient temperature compensation to maintain accuracy across variable environments. Technicians can toggle between manual and automatic reset modes, allowing for flexible diagnostic workflows. With a built-in 1NO-1NC auxiliary contact configuration, it facilitates immediate status signaling and control circuit interruption, making it a staple for maintaining high-efficiency motor starter assemblies.
Key Benefits- Versatile Reset Modes: Features a selectable manual and automatic reset to accommodate both attended and remote system configurations.
- Compact Frame C Design: Optimized for 45mm frame size, enabling direct attachment to XT series contactors for a compact footprint.
- Enhanced Motor Safety: Incorporates phase loss protection and bimetallic thermal modeling to extend motor service life.
- Easy Installation: Toolless direct mounting to compatible 18-32A contactors streamlines the assembly of full-voltage non-reversing (FVNR) starters.
- Standard Auxiliaries: Integrated 1NO and 1NC contacts are standard for remote trip indication and coil de-energization.
What contactors are compatible with the XTOB006CC1?
This overload relay is designed for Eaton XT series Frame C contactors, specifically models XTCE018C, XTCE025C, and XTCE032C.
Does this unit support single-phase motor protection?
Yes, although it is a 3-pole relay, it can be used for single-phase applications by wiring the poles in series to ensure all bimetallic elements sense the current flow.
Is the trip class adjustable on this model?
The XTOB006CC1 is a fixed Class 10 trip device, meaning it will trip in 10 seconds or less at six times the set current under locked rotor conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
