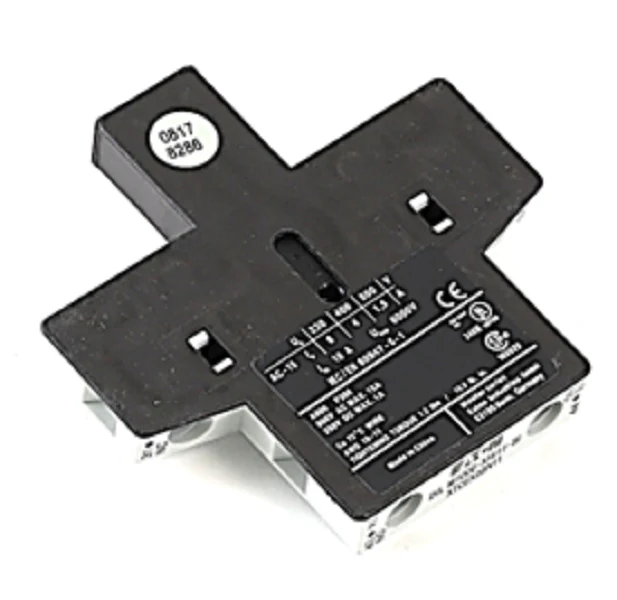

Eaton Cutler-Hammer XTCEXSBN11 Auxiliary
The Eaton Cutler-Hammer XTCEXSBN11 is a high-performance side mount auxiliary contact block designed for seamless integration with XT series manual motor protectors and contactors. Engineered for high-duty cycle industrial applications, this 1NO-1NC auxiliary contact provides critical feedback loops and interlocking functions, ensuring precise signaling within your control cabinet. The side-mounting configuration allows for easy field installation without increasing the depth of the primary device, making it ideal for high-density DIN rail layouts where space is at a premium.
This IEC-rated auxiliary switch features screw-terminal connections designed to maintain high torque retention under vibration-heavy conditions. By providing a normally open and normally closed contact pair, the XTCEXSBN11 facilitates both status indication and safety circuit logic simultaneously. This genuine Eaton XT side mount auxiliary is built to the exact tolerances of the Frame B and C contactors, ensuring mechanical synchronization and reliable electrical switching across the entire service life of the motor starter assembly.
- Universal XT Series Compatibility: Designed specifically for use with Frame B through C XTCE contactors and XTPR motor protectors.
- Snap-On Side Mounting: Minimizes enclosure depth requirements while providing secure mechanical coupling for reliable signal feedback.
- Industrial Build Quality: High-purity silver alloy contacts ensure low-resistance paths for low-voltage PLC inputs or heavy pilot duty loads.
- Clear Terminal Identification: Standardized numbering scheme allows for rapid wiring and streamlined troubleshooting during commissioning.
Common Questions
Can the XTCEXSBN11 be mounted on either side of the contactor?
Yes, this side-mount unit is designed to snap onto the side of the XT series motor starter, allowing for flexible wiring paths depending on your enclosure layout.
Does this auxiliary contact support low-level PLC switching?
The Eaton XTCEXSBN11 is built with high-quality contact material suitable for standard 120V/240V control circuits as well as low-voltage PLC signaling applications.
What is the maximum number of auxiliary contacts I can add to a single XT contactor?
Compatibility varies by frame size, but typical XTCE contactors allow for one side-mounted auxiliary on each side in addition to top-mounted options for complex logic requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
