Eaton Cutler-Hammer XTCEXFBG22 Aux contact

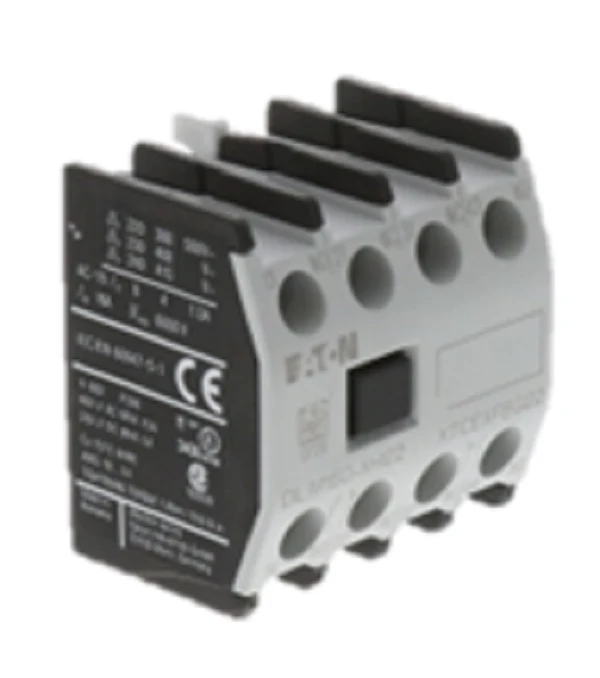

The Eaton Cutler-Hammer XTCEXFBG22 is a high-performance 4-pole front-mount auxiliary contact block engineered specifically for the XT series IEC contactor line. Designed for heavy-duty industrial motor control, this unit features a 2NO-2NC contact configuration (2 normally open, 2 normally closed) to provide reliable feedback and control signaling. It is technically compatible with Eaton XT series Frame D through G contactors, supporting a conventional thermal current (Ith) of 16A and an operational voltage up to 690V AC. The screw terminal design ensures secure, vibration-resistant wiring, making it ideal for high-cycling HVACR and automation environments. Integrated interlocked opposing contacts enhance safety by preventing simultaneous engagement of normally open and normally closed circuits. Whether you are performing a field replacement or a new control panel build, the XTCEXFBG22 auxiliary contact offers the precision and ruggedness required for modern IEC power control systems.
Key Benefits
- Universal Frame Compatibility: Specifically designed for seamless integration with Eaton XT Frame D to G contactors and XTRE control relays.
- Enhanced Signaling Safety: Features interlocked opposing contacts to ensure circuit integrity and prevent conflicting signals in critical control loops.
- Industrial Grade Amperage: Rated for a 16A conventional thermal current, providing robust performance for signaling and secondary control circuits.
- Simplified Field Installation: The front-mount screw terminal design allows for rapid tool-less attachment to the primary contactor, reducing labor time during maintenance.
Common Questions
Which contactors are compatible with the XTCEXFBG22?
This auxiliary block is designed for Eaton XT series contactors within the Frame D, F, and G sizes, typically ranging from 40A to 150A (XTCE040D through XTCE150G).
Can this block be used with XTRE control relays?
Yes, the XTCEXFBG22 is fully compatible with XTRE control relays, providing additional 2NO-2NC poles for complex logic and interlocking applications.
What is the purpose of the Sequence B designation?
Sequence B refers to the specific contact terminal numbering and physical layout required for coordination with the internal circuitry of Frame D-G contactors to ensure proper electrical numbering (e.g., 53-54, 61-62).
