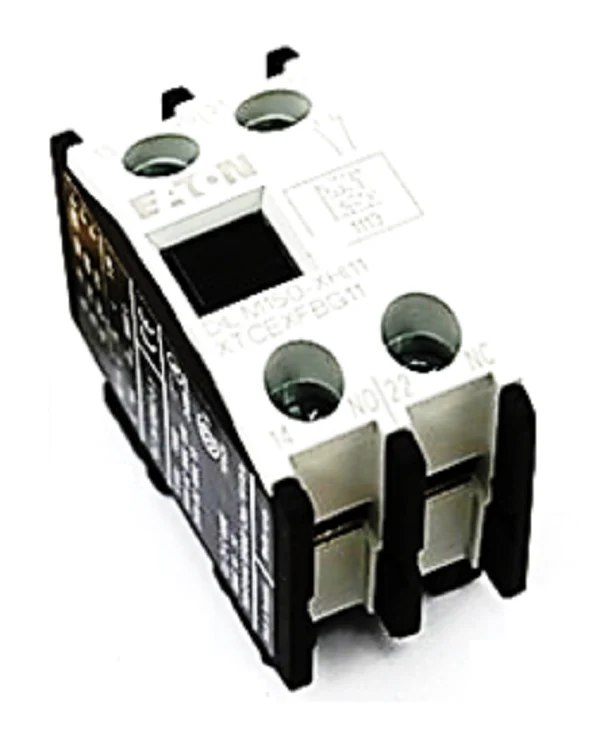

Eaton Cutler-Hammer XTCEXFBG11 Auxiliary Contact
The Eaton Cutler-Hammer XTCEXFBG11 is a front-mounted, 2-pole auxiliary contact block designed specifically for the XT series IEC contactor line. This 1NO-1NC contact configuration provides essential feedback for control circuits, allowing for simultaneous signaling of status and interlocking functionality. Engineered for high-cycle reliability in demanding industrial environments, this side-by-side pole arrangement ensures rapid response times and consistent electrical continuity. The XTCEXFBG11 features screw-terminal connections that accept standard wire gauges, facilitating a secure, vibration-resistant termination. It is compatible with Frame B through Frame G contactors, making it a versatile component for motor control centers and HVACR automation panels. By utilizing double-break contacts, the unit minimizes arcing and extends service intervals. For technicians, the tool-less snap-on mounting reduces installation time during manifold builds or field replacements. This auxiliary block is a critical asset for implementing safety interlocks and remote monitoring in complex electrical systems.
Key Technical Benefits:- Universal Frame Compatibility: Seamlessly integrates with Eaton XT IEC contactors ranging from 7A to 170A.
- 1NO/1NC Contact Logic: Enables simplified electrical interlocking and status indication within a single compact footprint.
- High Thermal Current Rating: Robust internal components handle consistent switching loads without degradation.
- Front-Mount Design: Optimizes DIN rail space by utilizing the vertical profile of the primary contactor.
- Industrial Build Quality: High-grade thermoplastic housing resists surface tracking and environmental contaminants.
Is the XTCEXFBG11 compatible with non-Eaton contactors? No, this auxiliary contact is specifically engineered for the Eaton XT IEC product line and will not properly seat on other manufacturer frames.
What is the maximum wire size for the screw terminals? These terminals are optimized for 18 AWG to 14 AWG solid or stranded copper wire to ensure low-resistance connections.
Can I stack multiple XTCEXFBG11 blocks on one contactor? Frame-specific limits apply, but typically the XT series allows for front-mounted blocks to be used in conjunction with side-mounted auxiliaries for complex logic.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
