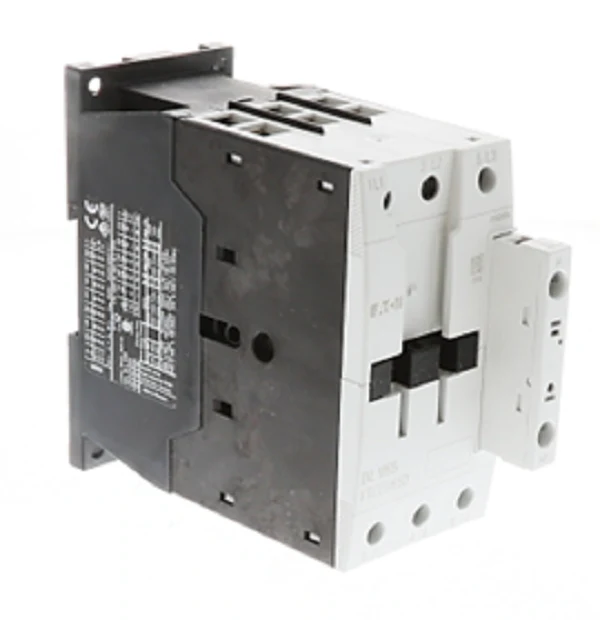

Eaton Cutler-Hammer XTCE065D00T Contactor
The Eaton Cutler-Hammer XTCE065D00T Contactor is a high-performance, 3-pole IEC contactor designed for reliable motor control in demanding HVACR and industrial applications. Built on the Eaton XT series Frame D platform, this unit is rated for 65 Amps (AC-3) and 88 Amps (AC-1), making it an ideal choice for 3-phase systems requiring a 24VAC control coil. It supports up to 25 HP at 230V and 50 HP at 460V, providing robust full voltage non-reversing (FVNR) operation. The compact 55 mm frame allows for efficient panel layout, while the DIN rail mounting capability ensures rapid installation for contractors. With IP20 finger-safe terminals and screw-type connections, this contactor offers secure wiring and minimizes the risk of accidental contact during maintenance. This 65AMP 24V 3PH Contactor is engineered to meet global standards including UL, CSA, and IEC 60947, ensuring seamless integration into existing control logic without the need for additional suppressors in many standard configurations.
Key Benefit- Versatile 3-Phase Control: Rated for 50 HP at 460V, making it suitable for heavy-duty motors in commercial HVAC units.
- Space-Efficient Design: The Frame D 55 mm width allows for high-density mounting on standard 35 mm DIN rails.
- Global Compliance: Meets IEC, UL, and CSA standards, providing a universal solution for international equipment specifications.
- Enhanced Safety: Features IP20-rated protection to ensure back-of-hand and finger safety during operation.
- Flexible Expansion: Compatible with XTOB overload relays and front-mounted auxiliary contact blocks for expanded control functionality.
What is the maximum horsepower rating for this contactor at 460V?
The XTCE065D00T is rated for 50 HP at 460V and 60 HP at 575V for 3-phase applications.
Does this unit include auxiliary contacts?
The standard D00T configuration is a bare 3-pole contactor (0NO-0NC) designed to be customized with snap-on auxiliary blocks as needed.
Can I mount this on a standard DIN rail?
Yes, this contactor is designed for both traditional panel screw mounting and standard 35 mm DIN rail installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $392.74
-65%$392.74
$137.46Eaton Cutler-Hammer XTCE065D00T Contactor
