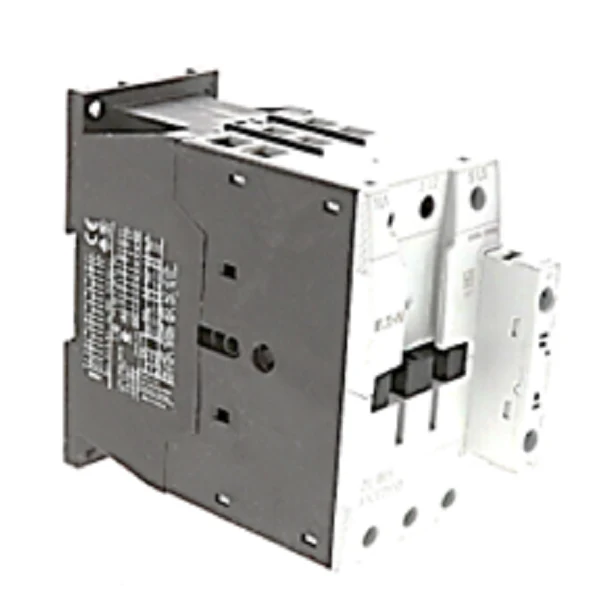

Eaton Cutler-Hammer XTCE065D00A Contactor
The Eaton Cutler-Hammer XTCE065D00A Contactor is a heavy-duty 65A IEC contactor engineered for motor control and power switching applications within the XT Series. This Frame D unit features a 110V/50Hz, 120V/60Hz AC coil and is designed for 3-pole configuration, handling up to 40HP at 480V and 50HP at 600V. Built to withstand high-cycling industrial environments, the non-reversing contactor utilizes finger-safe terminals and accommodates side-mounted or front-mounted auxiliary contacts for customized logic integration. This three-phase magnetic contactor facilitates seamless integration into motor control centers (MCCs) where compact footprints and DIN rail mounting are required. The rugged construction ensures reliable arc suppression and electrical endurance when managing inductive loads. For contractors upgrading existing panels, this unit serves as a direct replacement for legacy Freedom Series or earlier XT components, provided the enclosure space allows for the Eaton XTCE065D00A dimensions.
- High Ampacity Rating: Rated for 65A AC-3 applications, making it ideal for large blower motors and refrigeration compressors.
- Versatile Coil Voltage: The 120V control circuit compatibility allows for standardized wiring in most North American commercial HVACR systems.
- Compact Frame D Design: Maximizes panel space while maintaining superior heat dissipation and mechanical life.
- Global Compliance: Meets CE, UL, and CSA standards for use in various industrial and commercial installations.
Common Technical Questions
What is the maximum horsepower rating for this contactor at 480V?
The Eaton XTCE065D00A is rated for 40HP at 480V, making it suitable for significant industrial motor loads.
Can I add auxiliary contacts to this specific Frame D model?
Yes, this unit supports the addition of XTCEX hierarchy auxiliary contact blocks on both the front and side for enhanced feedback loops.
Is this contactor suitable for resistive loads (AC-1)?
While optimized for AC-3 inductive loads, it features an AC-1 rating of up to 98A, allowing for use in heating element applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $392.74
-65%$392.74
$137.46Eaton Cutler-Hammer XTCE065D00A Contactor
