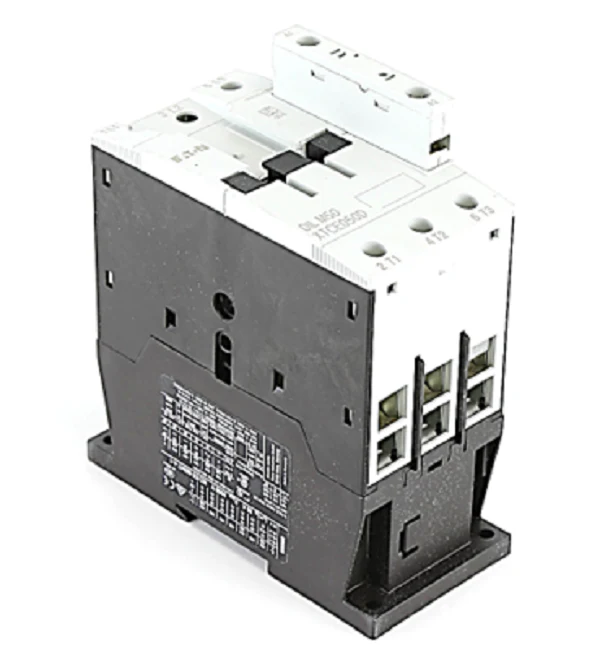

Eaton Cutler-Hammer XTCE050D00A Contactor
The Eaton Cutler-Hammer XTCE050D00A Contactor is a heavy-duty, 3-pole IEC-rated industrial component designed for reliable motor control in HVACR and automation systems. Engineered for Full Voltage Non-Reversing (FVNR) applications, this 50 Amp AC-3 (80 Amp AC-1) contactor features a Frame D 55mm housing, making it a space-efficient solution for panel builders and technicians. It operates with a 110V/50Hz - 120V/60Hz AC coil, ensuring compatibility with standard control circuits. This model supports inductive loads up to 50 HP at 460V and 20 HP at 230V, providing robust power handling for high-demand equipment. Designed for versatility, the XTCE050D00A includes screw terminals for secure wiring and accommodates both DIN rail and panel mounting. Its IP20 finger-proof construction enhances safety during maintenance, while the modular design allows for the direct attachment of XTOB thermal overload relays to create a complete starter assembly.
Key Benefits- High Power Density: Delivers 50A inductive capacity in a compact 55mm Frame D footprint, ideal for crowded control panels.
- Universal Compatibility: Meets IEC, UL, CSA, and CE standards for global application in motor control and power distribution.
- Easy Installation: Features dual mounting options (DIN rail or screw mounting) and accessible screw-clamp terminals for rapid field wiring.
- Modular Expansion: Supports up to six additional auxiliary contact blocks (front or side mount) for complex logic and feedback loops.
- Operational Reliability: Specifically built for high-cycle applications with a large ambient temperature operating range.
What is the maximum horsepower rating for this contactor?
The Eaton XTCE050D00A is rated for up to 40 HP at 460V and 50 HP at 575V for 3-phase applications. For 230V 3-phase systems, it manages up to 20 HP.
Can I use this contactor as a replacement for Moeller DILM series?
Yes, the Eaton XT series is the direct modern successor to the Moeller DILM line, offering matching footprints and improved technical ratings for seamless retrofitting.
What type of overload relay is compatible with this unit?
To provide motor protection, any XTOB series thermal overload relay can be directly mounted to the load side (T1-T2-T3) of this contactor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $369.99
-65%$369.99
$129.50Eaton Cutler-Hammer XTCE050D00A Contactor
The Eaton Cutler-Hammer XTCE050D00A Contactor is a heavy-duty, 3-pole IEC-rated industrial component designed for reliable motor control in HVACR and automation systems. Engineered for Full Voltage Non-Reversing (FVNR) applications, this 50 Amp AC-3 (80 Amp AC-1) contactor features a Frame D 55mm housing, making it a space-efficient solution for panel builders and technicians. It operates with a 110V/50Hz - 120V/60Hz AC coil, ensuring compatibility with standard control circuits. This model supports inductive loads up to 50 HP at 460V and 20 HP at 230V, providing robust power handling for high-demand equipment. Designed for versatility, the XTCE050D00A includes screw terminals for secure wiring and accommodates both DIN rail and panel mounting. Its IP20 finger-proof construction enhances safety during maintenance, while the modular design allows for the direct attachment of XTOB thermal overload relays to create a complete starter assembly.
Key Benefits- High Power Density: Delivers 50A inductive capacity in a compact 55mm Frame D footprint, ideal for crowded control panels.
- Universal Compatibility: Meets IEC, UL, CSA, and CE standards for global application in motor control and power distribution.
- Easy Installation: Features dual mounting options (DIN rail or screw mounting) and accessible screw-clamp terminals for rapid field wiring.
- Modular Expansion: Supports up to six additional auxiliary contact blocks (front or side mount) for complex logic and feedback loops.
- Operational Reliability: Specifically built for high-cycle applications with a large ambient temperature operating range.
What is the maximum horsepower rating for this contactor?
The Eaton XTCE050D00A is rated for up to 40 HP at 460V and 50 HP at 575V for 3-phase applications. For 230V 3-phase systems, it manages up to 20 HP.
Can I use this contactor as a replacement for Moeller DILM series?
Yes, the Eaton XT series is the direct modern successor to the Moeller DILM line, offering matching footprints and improved technical ratings for seamless retrofitting.
What type of overload relay is compatible with this unit?
To provide motor protection, any XTOB series thermal overload relay can be directly mounted to the load side (T1-T2-T3) of this contactor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
