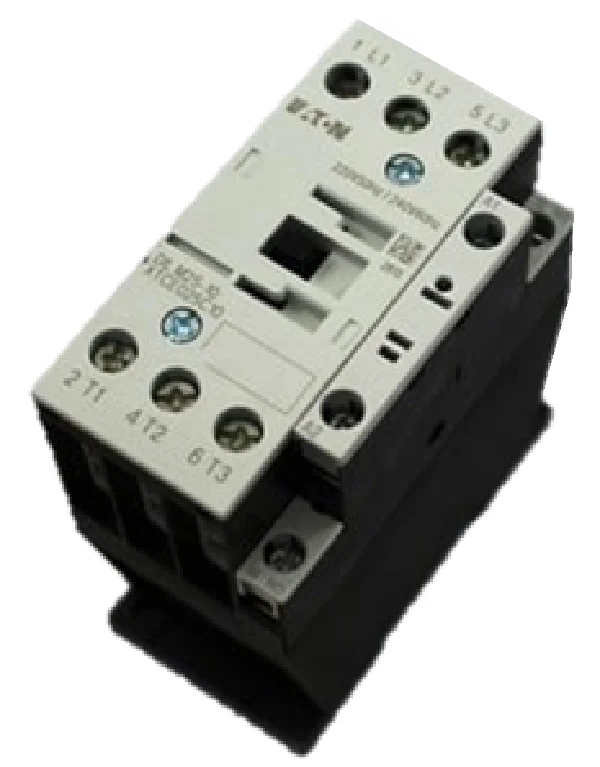

Eaton Cutler-Hammer XTCE025C10B Contactor
The Eaton Cutler-Hammer XTCE025C10B is a heavy-duty three-pole magnetic contactor engineered for reliable motor control in HVACR and industrial automation systems. Rated for 25 Amps (AC-3) and featuring a 220V/240V 50/60Hz AC coil, this Frame C unit is optimized for switching inductive loads up to 15 HP at 480V. It utilizes finger-safe terminals and high-performance contact materials to minimize arcing and extend the mechanical life of the motor starter assembly. Designed to meet IEC/EN 60947 standards, the XTCE025C10B integrates seamlessly with XTOB overload relays, providing a compact footprint for space-constrained control panels. Its 1NO (Normally Open) auxiliary contact allows for easy status signaling or interlocking, while the DIN rail mounting capability ensures rapid field installation and secure positioning during high-vibration operation. This industrial control contactor is a direct replacement for legacy Eaton XT series components, maintaining high electrical endurance and low power consumption across the coil circuit.
Key Benefits- Enhanced Durability: Rated for up to 10 million mechanical operations, ensuring long-term reliability in demanding motor control applications.
- Space-Efficient Design: The Frame C housing dimensions allow for high-density mounting within standard NEMA enclosures.
- Universal Compatibility: Works with a wide range of Eaton XT accessories, including suppressors, timers, and side-mount auxiliary contacts.
- Operational Efficiency: Low-wattage coil design reduces heat dissipation within the electrical cabinet, protecting sensitive electronic components.
What is the maximum horsepower rating for this contactor?
The XTCE025C10B is rated for 7.5 HP at 230V and up to 15 HP at 460V for three-phase motor applications.
Can I add additional auxiliary contacts to this unit?
Yes, this Frame C contactor supports both front-mount and side-mount auxiliary contact blocks to expand your control logic options.
Is the coil replaceable if it fails?
While the XT series is built for longevity, the modular design allows for coil replacement or the addition of voltage suppressors to mitigate transient spikes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $160.00
-65%$160.00
$56.00Eaton Cutler-Hammer XTCE025C10B Contactor
