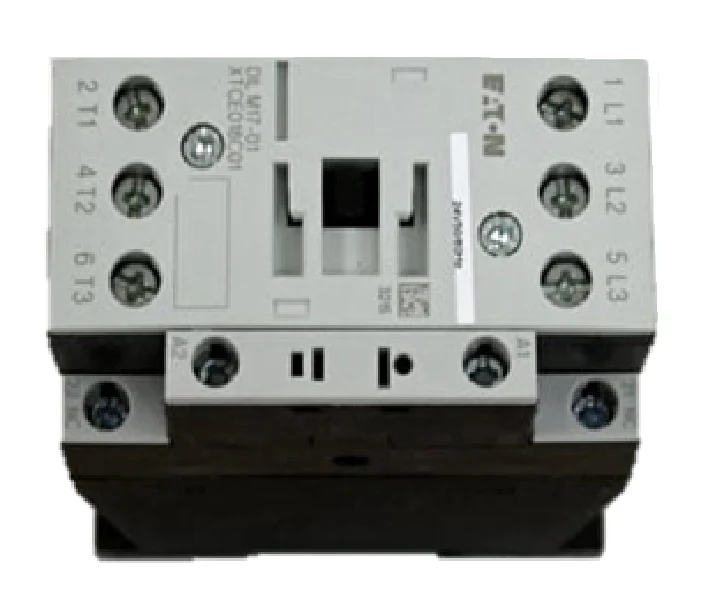

Eaton Cutler-Hammer XTCE018C01T Contactor
The Eaton Cutler-Hammer XTCE018C01T is a compact, IEC-rated magnetic contactor engineered for demanding motor control applications in HVACR and industrial environments. This Frame C contactor features a 3-pole configuration and is rated for 18 Amps (AC-3), making it a reliable solution for managing inductive loads up to 10HP at 480V. It operates on a 24V 50/60Hz AC control coil, providing seamless integration with standard low-voltage control circuits. The unit includes one integrated 1 N/C auxiliary contact, facilitating electrical interlocking or status signaling without the immediate need for add-on blocks.
Built to the XT Power Control standard, the XTCE018C01T utilizes finger-safe terminals and high-performance contact materials to ensure long electrical life and minimal heat dissipation. Its space-saving design allows for high-density mounting on 35mm DIN rail, while the robust construction resists mechanical vibration common in compressor and blower motor housings. This contactor ensures precise switching and protection when paired with compatible XTOB thermal overload relays.
Key Benefits for Technicians
- High Cycling Capacity: Designed for frequent switching in heavy-duty motor applications.
- Simplified Wiring: Features clearly marked IP20-rated screw terminals for secure, efficient installations.
- Space Optimization: Compact Frame C footprint reduces enclosure requirements in multi-motor panels.
- Reliable Coil Operation: The 24V AC coil maintains consistent pull-in and seal-in voltages to prevent contact chatter.
- Global Standards Compliance: Meets UL, CSA, and CE requirements for international equipment specifications.
Common Questions
What is the maximum horsepower rating for this contactor?
The XTCE018C01T is rated for up to 5HP at 230V, 10HP at 460V, and 15HP at 575V for 3-phase applications.
Can I add more auxiliary contacts to this unit?
Yes, this Frame C unit supports top or side-mounted auxiliary contact modules if additional N/O or N/C poles are required for the control logic.
Does this contactor replace older AE16 series models?
The XT series is the modern successor to the Freedom line; check the footprint and coil voltage to ensure a proper field retrofit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
