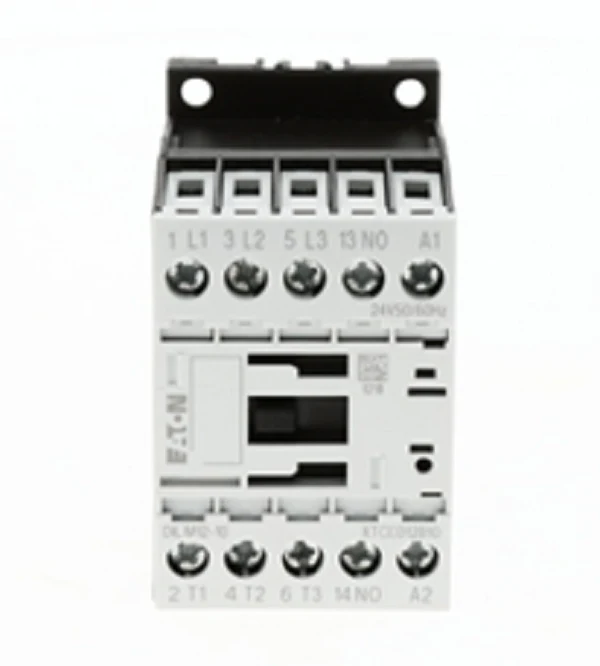

Eaton Cutler-Hammer XTCE012B10T Contactor
The Eaton Cutler-Hammer XTCE012B10T is a high-performance 3-pole non-reversing contactor engineered for demanding motor control applications within HVACR and industrial automation systems. This IEC contactor features a 24V 50/60Hz AC coil and is rated for a 12 amp (AC-3) inductive load, making it suitable for managing motors up to 5 HP at 460V. Built on the Eaton B-Frame platform, it provides a compact footprint for space-constrained enclosures. The unit includes one normally open (1NO) integrated auxiliary contact to simplify control circuit wiring. Its finger-safe terminals and high short-circuit current rating (SCCR) ensure reliable operation and safety compliance. Designed for high-cycle durability, the XTCE012B10T offers seamless compatibility with DIN rail mounting and XT series accessories, ensuring a robust solution for switching three-phase motors and resistive loads in commercial environments.
Key Benefits:- Optimized Frame Size: The Frame B design allows for high-density mounting in control panels without sacrificing thermal performance.
- Reliable Switching: Rated for 12A AC-3, providing consistent motor control for pumps, fans, and compressors.
- Simplified Integration: Built-in 1NO auxiliary contact reduces the need for additional add-on blocks for basic signaling.
- Global Standards Compliance: Meets UL, CSA, and CE requirements, ensuring the XTCE contactor is suitable for international electrical configurations.
- What is the maximum horsepower rating for this contactor? At 460V, the Eaton XTCE012B10T is rated for 5.5 kW or approximately 7.5 HP for AC-3 applications.
- Does this unit support DC control voltages? No, this specific model is designed for 24VAC control circuits. For DC applications, a different XT series coil configuration is required.
- Can I add additional auxiliary contacts? Yes, the B-Frame supports top-mounted auxiliary contact blocks if more than one NO/NC contact is needed for the sequence of operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
