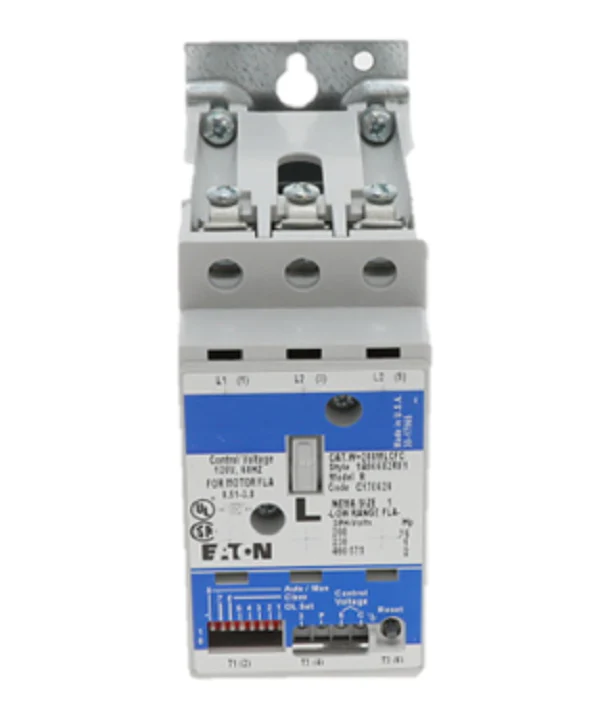

Eaton Cutler-Hammer W+200MLCFC Starter
The Eaton Cutler-Hammer W+200MLCFC is a NEMA Size 1 Advantage series non-reversing motor starter designed for precision control in HVACR and industrial motor circuits. This full voltage non-reversing (FVNR) starter features a built-in Current Sensing Module and a low-range electronic overhaul relay, providing superior protection against phase loss, phase unbalance, and ground current fluctuations. Engineered for Advantage motor control systems, the W+200MLCFC facilitates seamless integration into existing Cutler-Hammer motor control centers and panels. The solid-state design eliminates the need for traditional heater coils, reducing heat dissipation within the enclosure and simplifying field adjustments. Technical specifications support various NEMA motor starter applications where high-cycle reliability and accurate trip settings are critical for preventing motor burnout. For contractors managing industrial motor control deployments, this Eaton W200 starter ensures consistent contactor performance and reliable load management across demanding electrical environments.
- Solid-State Protection: Integrated electronic overloads provide accurate current sensing without the requirement for physical heater packs.
- Phase Loss Sensitivity: Rapidly detects unbalanced loads or lost phases to prevent expensive winding damage in three-phase motors.
- Reduced Enclosure Heat: Efficient electronic monitoring lowers the internal ambient temperature compared to thermal bimetallic starters.
- NEMA Size 1 Compatibility: Direct replacement for standard NEMA footprints in Advantage series control configurations.
- Microprocessor Control: Enhanced diagnostic capabilities allow for precise trip class selection and communication with external monitoring systems.
Common HVACR Contractor Questions:
Does the W+200MLCFC require separate heater coils for operation?
No, this unit utilizes an integrated low-range electronic overload, which replaces traditional thermal heaters and allows for selectable trip settings via the internal current sensing module.
Can this starter be used for both single-phase and three-phase applications?
The W200 series is primarily designed for three-phase motor control to utilize its phase protection features, though specific wiring configurations can vary based on the Advantage starter model specifications.
What are the benefits of the Advantage series over standard Freedom starters?
Advantage starters like the W+200MLCFC offer microprocessor-based protection and lower energy consumption through reduced coil-holding current and integrated current sensing components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
