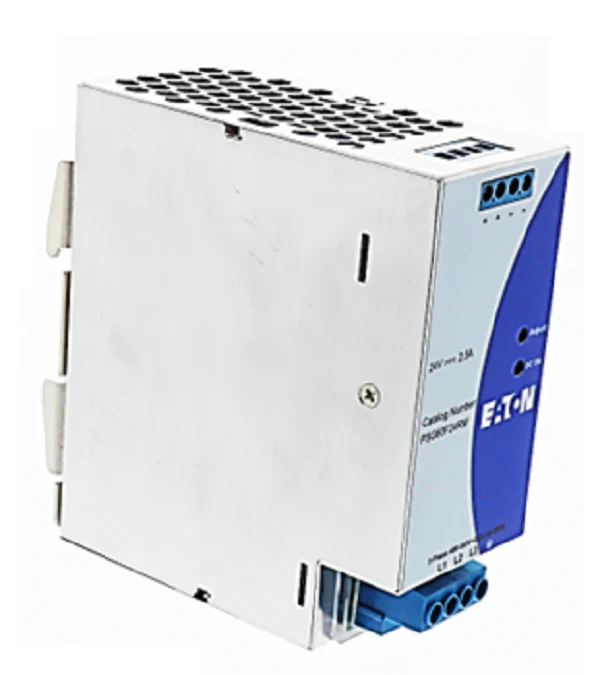

Eaton Cutler-Hammer PSG60F24RM Power Supply
The Eaton Cutler-Hammer PSG60F24RM is a high-performance 24VDC DIN rail power supply engineered for industrial automation and HVACR control systems. This 60W three-phase power supply provides a stable 2.5A output current, making it an essential component for powering PLCs, sensors, and communication networks in demanding environments. Built with a rugged aluminum housing and finger-safe terminals, this unit is designed to withstand harsh technical conditions while maintaining high efficiency across a wide input voltage range of 320–575 VAC. The adjustable output voltage (22–28 VDC) allows for precise calibration to account for line drops in extensive wiring runs. Integrated overvoltage and short-circuit protection ensure system reliability, preventing downstream component damage during transient surges. For contractors looking for a reliable Eaton PSG series solution, this model offers a compact footprint and conformal coated electronics for superior resistance to humidity and thermal stress.
Key Benefits:- Three-Phase Input: Optimized for 400-500VAC nominal systems, providing better load balancing and reduced harmonic distortion compared to single-phase units.
- Industrial Durability: The corrosion-resistant aluminum enclosure and wide operating temperature range (-25°C to +75°C) ensure longevity in unconditioned mechanical rooms.
- Reliable Monitoring: Features a Green LED DC OK signal for immediate visual diagnostics and status verification during routine maintenance.
- Heavy Load Startup: Supports a 1.5-fold power boost for 5 seconds, allowing the system to handle high inrush currents from inductive loads without tripping.
Is the PSG60F24RM compatible with single-phase power?
No, this specific model is a three-phase power supply designed for 320-575 VAC inputs. Utilizing it on a single-phase circuit will result in underperformance or failure to start.
Can the output voltage be adjusted?
Yes, the unit includes a front-facing potentiometer that allows the 24VDC output to be tuned between 22V and 28V to match specific hardware requirements.
How does the unit handle overheating?
The PSG60F24RM features thermal protection. If ambient temperatures exceed 50°C, the unit requires de-rating (2.5% per °C) to prevent entering a bouncing/oscillation mode for self-preservation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $264.80
-65%$264.80
$92.68Eaton Cutler-Hammer PSG60F24RM Power Supply
The Eaton Cutler-Hammer PSG60F24RM is a high-performance 24VDC DIN rail power supply engineered for industrial automation and HVACR control systems. This 60W three-phase power supply provides a stable 2.5A output current, making it an essential component for powering PLCs, sensors, and communication networks in demanding environments. Built with a rugged aluminum housing and finger-safe terminals, this unit is designed to withstand harsh technical conditions while maintaining high efficiency across a wide input voltage range of 320–575 VAC. The adjustable output voltage (22–28 VDC) allows for precise calibration to account for line drops in extensive wiring runs. Integrated overvoltage and short-circuit protection ensure system reliability, preventing downstream component damage during transient surges. For contractors looking for a reliable Eaton PSG series solution, this model offers a compact footprint and conformal coated electronics for superior resistance to humidity and thermal stress.
Key Benefits:- Three-Phase Input: Optimized for 400-500VAC nominal systems, providing better load balancing and reduced harmonic distortion compared to single-phase units.
- Industrial Durability: The corrosion-resistant aluminum enclosure and wide operating temperature range (-25°C to +75°C) ensure longevity in unconditioned mechanical rooms.
- Reliable Monitoring: Features a Green LED DC OK signal for immediate visual diagnostics and status verification during routine maintenance.
- Heavy Load Startup: Supports a 1.5-fold power boost for 5 seconds, allowing the system to handle high inrush currents from inductive loads without tripping.
Is the PSG60F24RM compatible with single-phase power?
No, this specific model is a three-phase power supply designed for 320-575 VAC inputs. Utilizing it on a single-phase circuit will result in underperformance or failure to start.
Can the output voltage be adjusted?
Yes, the unit includes a front-facing potentiometer that allows the 24VDC output to be tuned between 22V and 28V to match specific hardware requirements.
How does the unit handle overheating?
The PSG60F24RM features thermal protection. If ambient temperatures exceed 50°C, the unit requires de-rating (2.5% per °C) to prevent entering a bouncing/oscillation mode for self-preservation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
