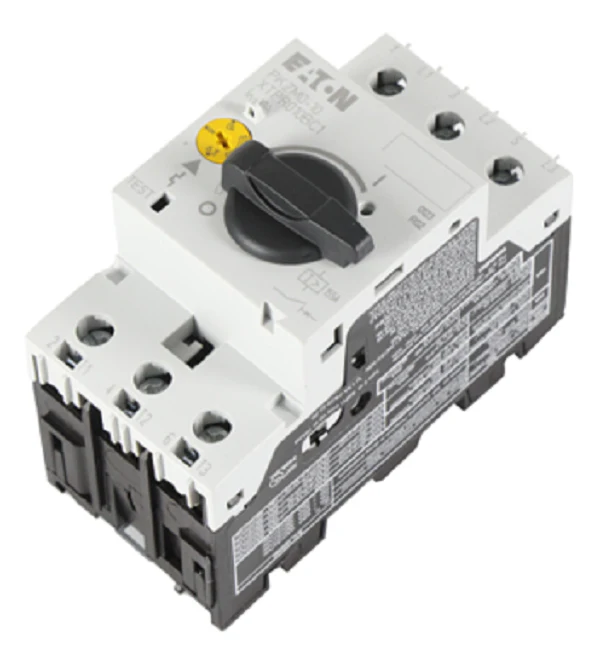

Eaton Cutler-Hammer PKZM0-10 Circuit Breaker
For industrial motor protection applications requiring high reliability and precision, the Eaton Cutler-Hammer PKZM0-10 is a fundamental choice for seasoned contractors. This motor protective circuit breaker features a 3-pole design and is engineered for an operational current of 10A with an adjustable thermal-magnetic trip range of 6.3A to 10A. It provides integrated overload and short-circuit protection, effectively acting as a manual motor protector to eliminate the need for separate fusing in many motor starter combinations.
The unit is designed for DIN rail mounting within 45mm frames, facilitating seamless horizontal or vertical installation in space-constrained control panels. With a short-circuit breaking capacity of 150 kA at 400V AC, this 3 pole 10 amp breaker ensures robust performance even under high fault conditions. Compatibility with the Eaton DIL contactor series makes it an ideal component for building modular motor starters. The screw terminal connections provide high vibration resistance, making it suitable for HVACR and heavy machinery environments where mechanical stability is non-negotiable.
Key Benefits
- Precision Motor Protection: Features a Class 10 trip characteristic to protect motors against phase failure and thermal overloads.
- Space-Saving Design: The compact 45mm frame width reduces panel footprint while housing both thermal and magnetic trip elements.
- Global Compatibility: Meets IEC/EN 60947, VDE 0660, and UL 508 standards, ensuring suitability for domestic and export projects.
- Ease of Integration: Tool-free accessory mounting and compatibility with three-phase busbar links streamline the assembly of multi-motor control systems.
Common Questions
What is the maximum voltage rating for the PKZM0-10?
This breaker is rated for operation up to 690V AC, making it suitable for a wide range of industrial power supplies.
Can the trip range be adjusted in the field?
Yes, the front-facing rotary dial allows technicians to adjust the thermal release setting between 6.3A and 10A to match the specific motor full-load current (FLC).
Is this unit compatible with DILM contactors?
Absolutely. It is specifically designed to mate with Eaton Moeller DILM contactors to form a UL-listed Type E self-protected combination motor controller.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $191.16
-65%$191.16
$66.91Eaton Cutler-Hammer PKZM0-10 Circuit Breaker
