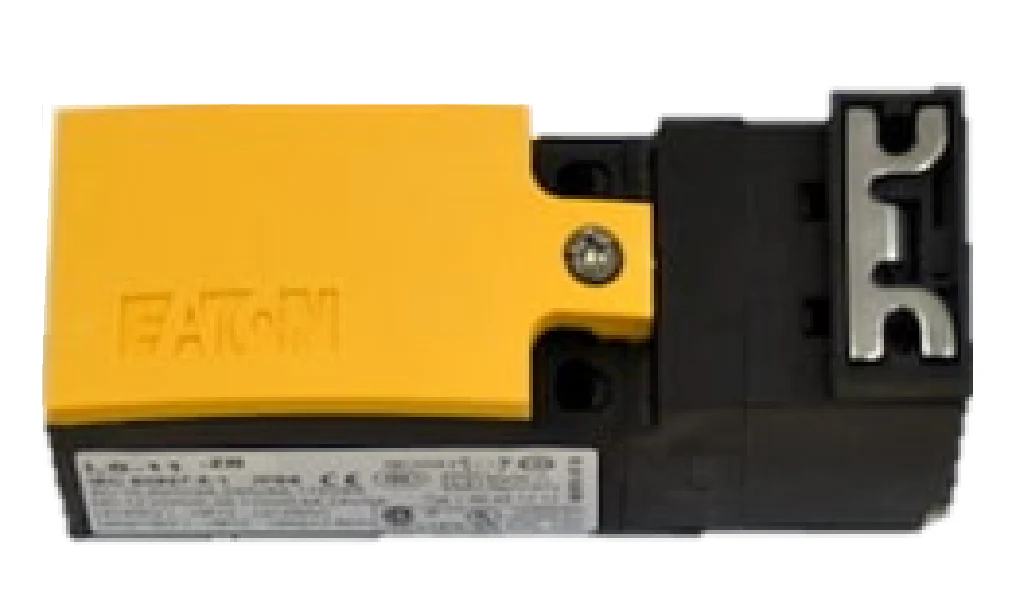

Eaton Cutler-Hammer LS-11-ZB Interlock Switch
The Eaton Cutler-Hammer LS-11-ZB is a heavy-duty safety interlock switch designed for critical equipment monitoring and personnel protection in industrial HVACR and automated environments. This LS-Titan miniature DIN limit switch features a 1NO-1NC contact configuration with a positive opening contact, ensuring reliable circuit interruption even in the event of mechanical contact welding. Built with a rugged IP66 rated plastic enclosure, it provides superior protection against high-pressure washdowns and dust ingress, making it an ideal choice for cabinet door monitoring and guard position sensing.
Engineered for high-performance switching, the LS-11-ZB safety switch supports a rated operational current of 6A at 230 Vac and 3A at 24 Vdc. The integrated cage clamp technology allows for fast, vibration-resistant wiring, while the five-way adjustable operating head can be repositioned in 90-degree increments to accommodate various mounting orientations. This industrial interlock switch is essential for contractors and technicians requiring a code-compliant, durable solution for machine safety systems that demand rigorous IEC/EN 60947-5-1 standards.
Key Benefits
- Enhanced Safety Compliance: Positive opening contacts ensure the NC circuit opens reliably to prevent hazardous machine operation.
- Reliable Termination: Cage clamp terminals provide secure connections that resist loosening in high-vibration HVACR applications.
- Universal Mounting: The adjustable actuator head supports flexible installation in horizontal or vertical positions.
- Environmental Durability: IP66 and IP65 protection ratings ensure long-term performance in damp and harsh industrial climates.
- Broad Compatibility: Rated for up to 415V AC, suitable for 115V, 230V, and 400V power systems.
Common Questions
How do I wire the LS-11-ZB for a safety circuit?The unit features 1 NO (Normally Open) and 1 NC (Normally Closed) contact. For safety interlock applications, the NC contact is typically utilized in the safety loop to ensure the circuit is broken when the guard is opened or the actuator is removed.
Can this switch be used as a mechanical stop for doors?No. Standard procedure dictates that the interlock switch must never be used as a mechanical stop. Use independent physical stops to protect the switch body from excessive impact forces.
What is the maximum operating temperature for this switch?This switch is rated for operation in ambient temperatures ranging from -13°F to +158°F (-25°C to +70°C), making it suitable for both cold storage and high-heat mechanical rooms.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
