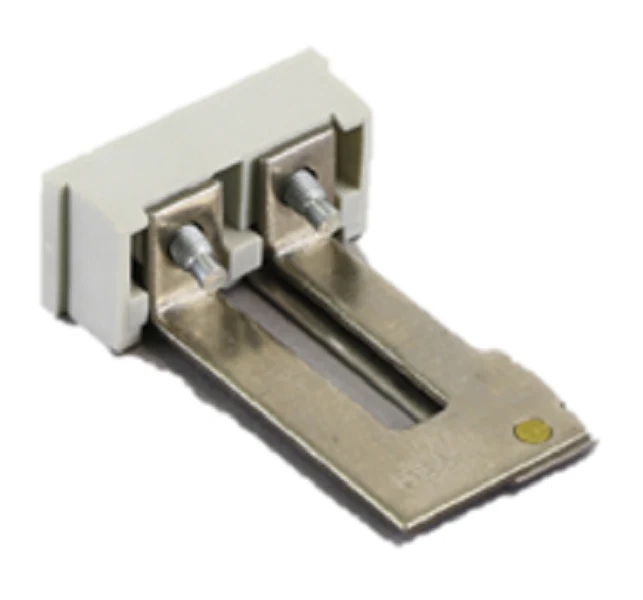

Eaton Cutler-Hammer H2022-3 Heater
When you're out in the field dealing with a tripped motor or a high-inertia load, you need a precise thermal response that doesn't cause nuisance shutdowns. This Eaton Cutler-Hammer H2022-3 Heater pack is a professional-grade solution designed specifically for the Freedom Series starters. It provides a flexible Full Load Amp (FLA) rating ranging from 62.2 to 84.6 Amps, which is easily adjustable via four distinct dial positions (A: 62.2A, B: 69.7A, C: 77.1A, D: 84.6A) to match your motor's nameplate data. As a Standard Trip Class 20 heater, these units are engineered to handle applications where the motor takes up to 20 seconds to reach full speed at 600% of its rated current. This makes them the go-to choice for heavy-duty HVACR equipment like large commercial fans, centrifugal pumps, or industrial compressors that often trigger Class 10 overloads prematurely. These genuine Eaton heater coils are compatible with NEMA Size 3 and 4 starters, as well as IEC sizes L through N (Series A). This set includes three heaters to ensure balanced protection across all phases of your three-pole overload relay, maintaining UL Listed and CSA Certified safety standards for your motor control center.
Key Benefits for Technicians:- Adjustable Dial Settings: Covers a wide 62.2-84.6A range, reducing the need to stock multiple fixed-rated heater packs.
- Class 20 Protection: Optimized for high-inertia startup cycles to prevent nuisance tripping in demanding industrial environments.
- Freedom Series Compatibility: Fits perfectly into NEMA Size 3-4 and IEC L-N (Series A) overload relays without modification.
- Standardized Set: Comes as a matching set of three to provide consistent thermal monitoring across all power leads.
- Technical Reliability: Built with high-strength, temperature-resistant insulating materials for reliable bimetallic operation.
What is the difference between Class 10 and this Class 20 heater?
A Class 20 heater allows the motor to sustain high inrush current for up to 20 seconds at 600% FLA before tripping, whereas Class 10 trips within 10 seconds. Use this H2022-3 for heavy loads that require longer acceleration times.
Are these compatible with Series B starters?
These are specifically designed for Series A and prior Freedom starters. If you are replacing heaters in a Series A relay with newer Series B components, you may require a separate lug adapter kit for proper fitment.
Can I use a single pack for a 3-phase motor?
No, for proper phase imbalance and overload protection, you must install all three heaters provided in this set into the corresponding poles of the relay.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer H2022-3 Heater
When you're out in the field dealing with a tripped motor or a high-inertia load, you need a precise thermal response that doesn't cause nuisance shutdowns. This Eaton Cutler-Hammer H2022-3 Heater pack is a professional-grade solution designed specifically for the Freedom Series starters. It provides a flexible Full Load Amp (FLA) rating ranging from 62.2 to 84.6 Amps, which is easily adjustable via four distinct dial positions (A: 62.2A, B: 69.7A, C: 77.1A, D: 84.6A) to match your motor's nameplate data. As a Standard Trip Class 20 heater, these units are engineered to handle applications where the motor takes up to 20 seconds to reach full speed at 600% of its rated current. This makes them the go-to choice for heavy-duty HVACR equipment like large commercial fans, centrifugal pumps, or industrial compressors that often trigger Class 10 overloads prematurely. These genuine Eaton heater coils are compatible with NEMA Size 3 and 4 starters, as well as IEC sizes L through N (Series A). This set includes three heaters to ensure balanced protection across all phases of your three-pole overload relay, maintaining UL Listed and CSA Certified safety standards for your motor control center.
Key Benefits for Technicians:- Adjustable Dial Settings: Covers a wide 62.2-84.6A range, reducing the need to stock multiple fixed-rated heater packs.
- Class 20 Protection: Optimized for high-inertia startup cycles to prevent nuisance tripping in demanding industrial environments.
- Freedom Series Compatibility: Fits perfectly into NEMA Size 3-4 and IEC L-N (Series A) overload relays without modification.
- Standardized Set: Comes as a matching set of three to provide consistent thermal monitoring across all power leads.
- Technical Reliability: Built with high-strength, temperature-resistant insulating materials for reliable bimetallic operation.
What is the difference between Class 10 and this Class 20 heater?
A Class 20 heater allows the motor to sustain high inrush current for up to 20 seconds at 600% FLA before tripping, whereas Class 10 trips within 10 seconds. Use this H2022-3 for heavy loads that require longer acceleration times.
Are these compatible with Series B starters?
These are specifically designed for Series A and prior Freedom starters. If you are replacing heaters in a Series A relay with newer Series B components, you may require a separate lug adapter kit for proper fitment.
Can I use a single pack for a 3-phase motor?
No, for proper phase imbalance and overload protection, you must install all three heaters provided in this set into the corresponding poles of the relay.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
