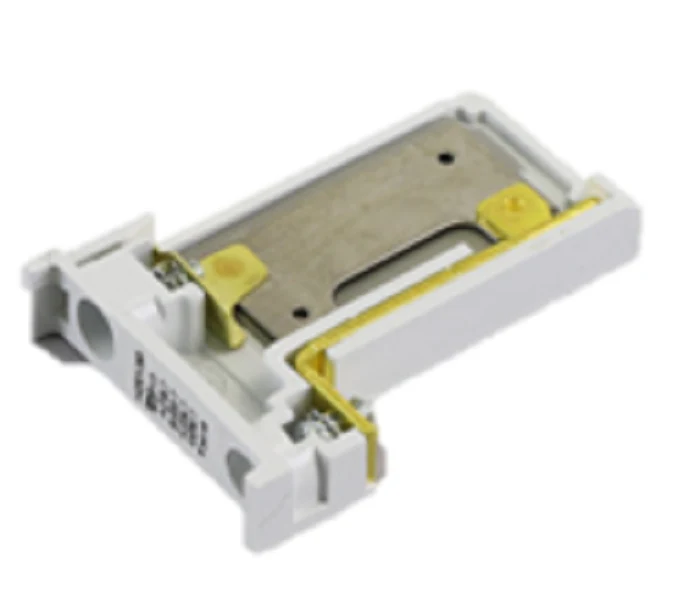

Eaton Cutler-Hammer H2013B-3 Heater
The Eaton Cutler-Hammer H2013B-3 Heater Pack is a critical component for achieving precise motor overload protection in industrial and HVACR control systems. Engineered for the Freedom Series, these bimetallic thermal units provide a steady Full Load Amp (FLA) rating range of 18.7 to 30.7 Amps. This standard trip Class 20 heater set is specifically designed to handle the thermal demands of heavy-duty motors, offering a 20-second trip time at 600% of the FLA to prevent winding damage during locked-rotor conditions. As a 3-pack set, it ensures complete phase protection for NEMA and IEC starters, specifically compatible with 32A or 75A overload relays. The adjustable dial allows contractors to fine-tune settings at positions A (18.7A), B (22.7A), C (26.7A), and D (30.7A), ensuring the overload relay is perfectly matched to the nameplate current. Built with high-strength, temperature-resistant materials, these heaters are the professional choice for maintaining industrial control integrity in 00-0 and 1-2 starter sizes.
Key Benefits
- Broad Compatibility: Seamlessly integrates with Eaton Freedom and Definite Purpose starters across NEMA Sizes 00 through 2.
- Precision Calibration: Features an adjustable Full Load Amperage range (18.7A - 30.7A) to accommodate specific motor requirements and avoid nuisance tripping.
- Robust Thermal Defense: The Class 20 trip curve provides superior protection for motors with high-inertia loads or long acceleration times.
- Application Versatility: Suitable for both Series B and Series C overload relays in modern HVACR motor control panels.
Common Questions
What is the difference between Class 10 and Class 20 heaters?
Class 20 heaters, like the H2013B-3, allow a motor to run for up to 20 seconds at six times its rated current before tripping, making them ideal for high-inertia startup loads compared to the 10-second window of Class 10 units.
Are these compatible with both NEMA and IEC starters?
Yes, these heater packs are designed for dual compatibility, fitting Eaton Freedom NEMA starters (Sizes 00-2) and IEC starters (Sizes A-K), provided they use a 32A or 75A relay.
How do I set the specific FLA on the dial?
Adjust the dial to the lettered position corresponding to your motor's nameplate FLA: A=18.7, B=22.7, C=26.7, and D=30.7. Always ensure the thermal overload setting matches the actual motor data for safe operation.
