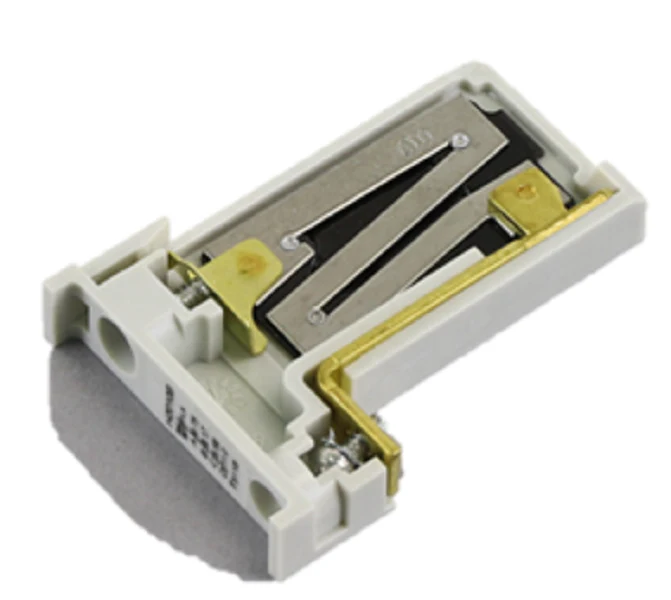

Eaton Cutler-Hammer H2010B-3 Heater
The Eaton Cutler-Hammer H2010B-3 Heater is an essential component for motor protection in industrial motor control panels and HVACR systems. As a veteran technician knows, selecting the correct thermal unit is critical for preventing motor burnout. This standard trip Class 20 heater pack is specifically engineered for the Eaton Freedom Series and is compatible with NEMA Size 00-0 (Series C) and NEMA Size 1-2 (Series B) starters. It also integrates seamlessly with IEC Sizes A-F (Series C) and G-K (Series B), offering versatility across varied electrical frameworks. With a Full Load Amp (FLA) rating of 6.75-11.0, this set of three calibrated bimetallic elements ensures reliable overload relay operation. Its ambient compensated design maintains trip accuracy even in fluctuating mechanical room temperatures. These heaters are designed for use with 32A or 75A C306 overload relays, ensuring precision thermal protection during steady-state operation and sustained overcurrent events.
Key Benefits:
- Compatible with Eaton Freedom NEMA starters and IEC motor controls for broad application.
- Features a Full Load Amp rating range of 6.75A to 11.0A for precise motor matching.
- Standard Class 20 trip rating provides robust protection for general-purpose motor loads.
- Calibrated for both 1.0 and 1.15 service factor motors to prevent nuisance tripping.
- Includes a set of three heater packs for complete three-phase motor protection.
Common Questions:
- How do I set the dial position for my specific FLA? The H2010B-3 features four marked positions (A6.75, B8.17, C9.58, D11.0); simply rotate the dial to the setting closest to your motor’s nameplate FLA.
- Is this compatible with older Series A overload relays? Yes, but if you are replacing older heater packs that had built-in load lugs, you must use a Lug Adapter Kit (C3606KAL1-3B) as these Series B units do not have integrated lugs.
- What happens if my motor has a 1.0 service factor? You should select the heater based on the motor's actual FLA; the bimetallic element is engineered to compensate for standard service factors to maintain protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $99.50
-65%$99.50
$34.82Eaton Cutler-Hammer H2010B-3 Heater
The Eaton Cutler-Hammer H2010B-3 Heater is an essential component for motor protection in industrial motor control panels and HVACR systems. As a veteran technician knows, selecting the correct thermal unit is critical for preventing motor burnout. This standard trip Class 20 heater pack is specifically engineered for the Eaton Freedom Series and is compatible with NEMA Size 00-0 (Series C) and NEMA Size 1-2 (Series B) starters. It also integrates seamlessly with IEC Sizes A-F (Series C) and G-K (Series B), offering versatility across varied electrical frameworks. With a Full Load Amp (FLA) rating of 6.75-11.0, this set of three calibrated bimetallic elements ensures reliable overload relay operation. Its ambient compensated design maintains trip accuracy even in fluctuating mechanical room temperatures. These heaters are designed for use with 32A or 75A C306 overload relays, ensuring precision thermal protection during steady-state operation and sustained overcurrent events.
Key Benefits:
- Compatible with Eaton Freedom NEMA starters and IEC motor controls for broad application.
- Features a Full Load Amp rating range of 6.75A to 11.0A for precise motor matching.
- Standard Class 20 trip rating provides robust protection for general-purpose motor loads.
- Calibrated for both 1.0 and 1.15 service factor motors to prevent nuisance tripping.
- Includes a set of three heater packs for complete three-phase motor protection.
Common Questions:
- How do I set the dial position for my specific FLA? The H2010B-3 features four marked positions (A6.75, B8.17, C9.58, D11.0); simply rotate the dial to the setting closest to your motor’s nameplate FLA.
- Is this compatible with older Series A overload relays? Yes, but if you are replacing older heater packs that had built-in load lugs, you must use a Lug Adapter Kit (C3606KAL1-3B) as these Series B units do not have integrated lugs.
- What happens if my motor has a 1.0 service factor? You should select the heater based on the motor's actual FLA; the bimetallic element is engineered to compensate for standard service factors to maintain protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
