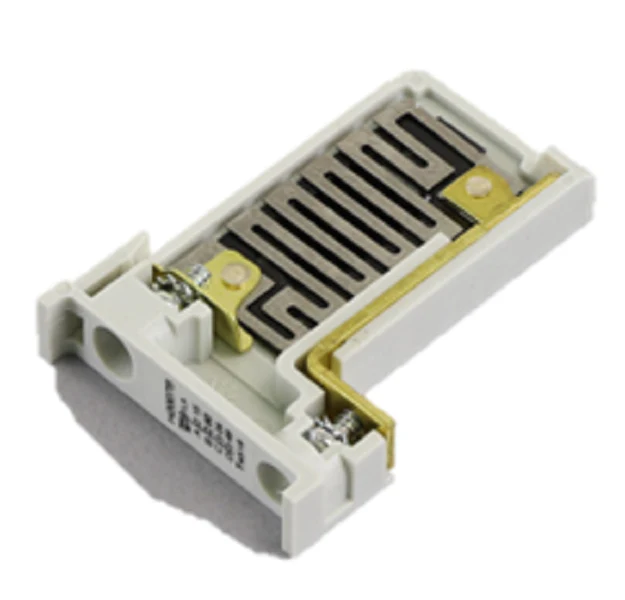

Eaton Cutler-Hammer H2007B-3 Heater
The Eaton Cutler-Hammer H2007B-3 Heater is an essential component for motor protection within the Freedom Series and Advantage starters. These Standard Trip Class 20 heaters are engineered to offer thermal overload protection, specifically calibrated for a Full Load Amp (FLA) range of 2.15 to 3.49 Amps. When integrated into a NEMA size 00, 0, or 1 starter, these bimetallic elements provide reliable tripping characteristics to prevent motor burnout during sustained overcurrent conditions. This thermal overload heater set is designed for precision, responding to the heat generated by motor current to activate the trip mechanism when thresholds are exceeded. For contractors maintaining industrial motor control centers, ensuring the correct heater selection based on the specific motor nameplate FLA is critical for system uptime and equipment longevity. These Type B heaters maintain consistent performance in demanding HVACR environments, offering the robust build quality expected from Eaton electrical components.
Key Benefits:- Precise FLA Calibration: Specifically rated for 2.15-3.49 Amps to ensure accurate motor protection for smaller horsepower loads.
- Class 20 Trip Curve: Provides a 20-second trip time at 600% of the FLA, allowing for standard motor startup durations without nuisance tripping.
- NEMA Compatibility: Seamlessly installs into Cutler-Hammer Freedom Series starters and individual overload relays.
- Bimetallic Construction: Offers repeatable thermal response and durability in high-cycle industrial applications.
Can I use these heaters in a Size 2 starter?
No, the H2007B-3 is designed for NEMA Size 00, 0, and 1 starters. Size 2 and larger starters utilize different heater series or integrated electronic overloads.
How do I verify the correct FLA range if the motor nameplate is worn?
Always measure the running load amps with a calibrated meter and consult the Eaton heater selection table to ensure the FLA falls within the 2.15-3.49 amp window for this specific part number.
Do these heaters work with both AC and DC motors?
These thermal heaters are designed for use with AC motor starters; consult the specific starter documentation for any specialized DC applications or wiring requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
