Eaton Cutler-Hammer H2006B-3 Heater

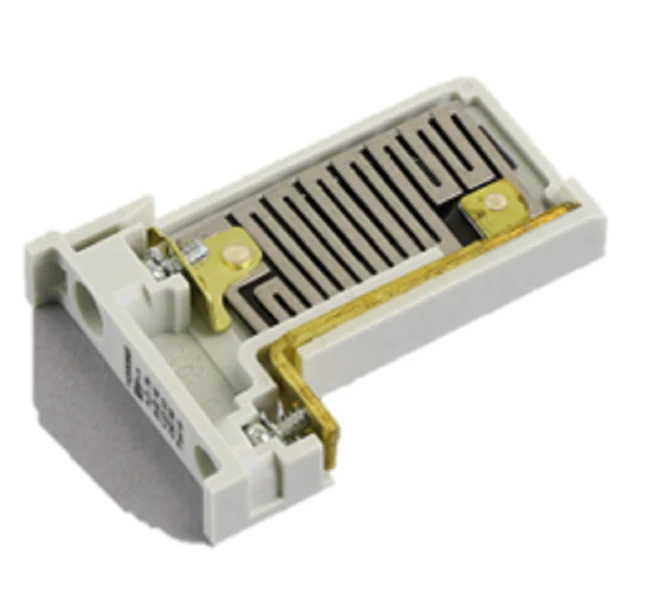

Enhance your motor protection with the Eaton Cutler-Hammer H2006B-3 Heater Pack, a professional-grade solution designed for the Freedom Series NEMA starters and IEC motor controls. Expertly engineered for precision, these thermal overload elements support a Full Load Amp (FLA) rating of 1.79-2.90 Amps, providing essential bimetallic protection against phase loss and sustained overcurrent conditions. As a Class 20 standard trip component, the H2006B-3 is specifically calibrated to allow sufficient inrush current during motor startup while ensuring a reliable trip within 20 seconds at 600% of the maximum setting. This set of 3 heaters is compatible with NEMA Size 00-0 (Series C) and Size 1-2 (Series B) starters, as well as various Freedom Series thermal overload relays. The adjustable dial allows technicians to fine-tune the protection to match specific motor service factors (1.0 or 1.15), ensuring maximum operational uptime and equipment safety in demanding industrial HVACR applications.
Key Benefits- Precision FLA Range: Adjustable 1.79-2.90 Amp rating ensures exact matching to motor nameplate data.
- Standard Trip Logic: Reliable Class 20 protection prevents premature tripping during high-inertia starts.
- Universal Compatibility: Fits Eaton Freedom Series, Definite Purpose, and IEC-rated motor starters.
- Bimetallic Design: Ambient compensated performance maintains accuracy across varying control cabinet temperatures.
- Efficient Installation: Field-replaceable design allows for quick maintenance and motor overload protection updates.
What NEMA starter sizes is the H2006B-3 compatible with?
This heater pack is designed for use with NEMA Size 00 and 0 (Series C) starters, as well as NEMA Size 1 and 2 (Series B) starters. It is also compatible with Freedom Series IEC Sizes A-F (Series C) and Sizes G-K (Series B).
How do I adjust the heater pack for a 1.15 service factor motor?
The heater pack is calibrated for 1.0 and 1.15 service factors. Follow the Full Load Amperage table provided with the starter or relay to select the correct dial position (A, B, C, or D) that matches your motor's specific nameplate FLA.
Can these be used for single-phase motor protection?
Yes, when installed in a 3-pole overload relay, these heaters provide comprehensive protection for single-phase or three-phase configurations, provided the wiring follows the manufacturer’s recommended series connection for single-phase loads.
