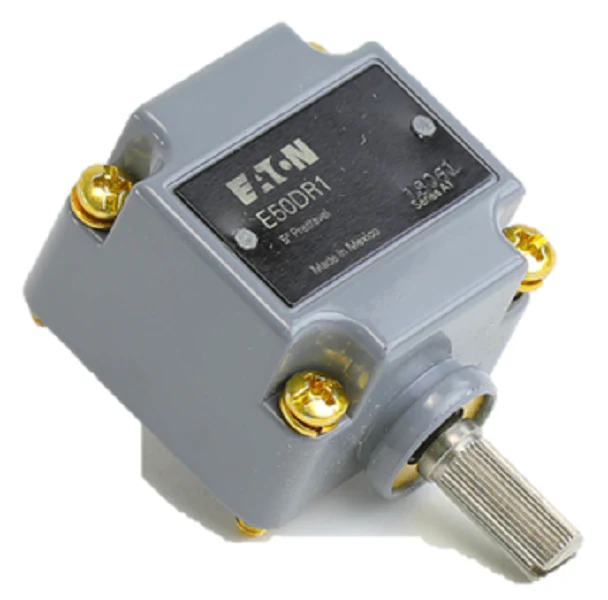

Eaton Cutler-Hammer E50DR1 Limit Switch
The Eaton Cutler-Hammer E50DR1 is a heavy-duty plug-in limit switch head designed for high-performance industrial and HVACR environments. This side rotary component features a standard spring return mechanism, providing reliable tactile feedback and precise actuation with a 5-degree travel requirement. Built for longevity in harsh conditions, the unit is constructed from die-cast zinc and utilizes Viton gaskets and seals, ensuring superior chemical resistance against common coolants, hydraulic fluids, and cleaning agents. As a modular E50 series limit switch part, it maintains a NEMA 4X, 6P, and 13 rating, making it suitable for washdown and submersible applications. The E50DR1 is engineered for seamless integration with E50 modular bodies and receptacles, allowing for rapid field replacement and reduced system downtime. This head supports clockwise, counter-clockwise, or bi-directional operation, offering the flexibility required for complex machinery layouts and conveyor control systems.
Key Benefits- Modular Design: Enables quick replacement of the operating head without rewiring the entire switch body.
- Extreme Durability: Zinc die-cast enclosure and Viton seals protect internal components from corrosive environments.
- Environmental Protection: Meets NEMA 1, 3, 3S, 4, 4X, 6, 6P, and 13 standards for indoor and outdoor versatility.
- Field Convertible: Easily adjusted for CW, CCW, or both directions of operation to fit specific application needs.
- Wide Temperature Range: Rated for stable operation between -10° to 200°F (-23° to 93°C).
Is the E50DR1 compatible with all E50 series bodies?
Yes, this head is a standard component for the Eaton E50 NEMA heavy-duty line and is interchangeable with any E50 modular plug-in switch body.
Does this unit include the lever arm?
No, the E50DR1 is the side rotary operating head only. Actuating levers and switch bodies must be purchased separately based on your specific throw and mounting requirements.
Can this limit switch head handle washdown environments?
Absolutely. Thanks to its NEMA 4X and IP67 ratings, it is specifically designed to withstand high-pressure hose-directed water and corrosive agents.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
