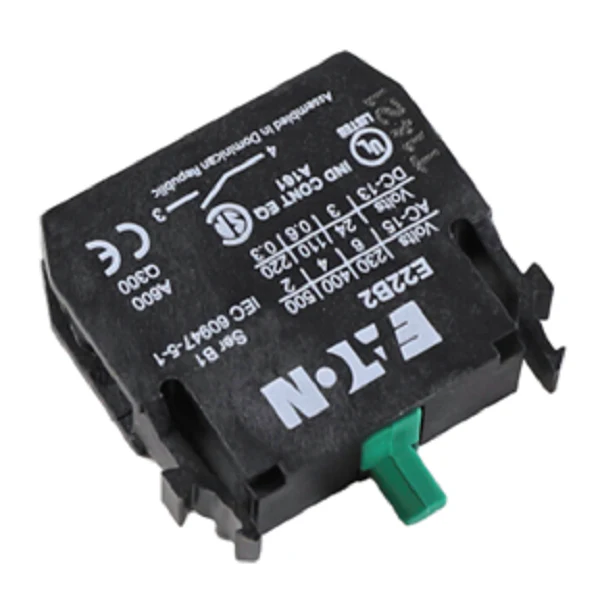

Eaton Cutler-Hammer E22B2 Contact block
The Eaton Cutler-Hammer E22B2 is a heavy-duty, 1 NO (Normally Open) contact block designed for industrial pilot device applications. Engineered for the 22.5 mm E22 series pushbuttons and selectors, this base-mounted contact block features high-conductivity silver-nickel contacts that ensure reliable low-level circuit switching and long-term electrical durability in high-cycle environments. The stackable design allows for flexible configuration, enabling technicians to build complex control logic within tight enclosure footprints. Designed with IP20 finger-safe terminals, it reduces the risk of accidental contact during maintenance and wiring. The pressure-plate screw terminals are optimized for secure wire retention, even under significant machine vibration. Whether you are performing a field replacement or integrating into a new motor control center, the E22B2 provides the thermal stability and mechanical endurance required for heavy-duty industrial automation applications, ensuring consistent continuity and system uptime across diverse OEM control panel configurations.
- Industrial Durability: Rugged construction designed for high-frequency switching in harsh industrial environments.
- Compact Footprint: Base-mount configuration allows for efficient panel layout and easy integration with 22.5mm E22 operators.
- Secure Connections: Features vibration-resistant screw terminals with pressure plates for consistent electrical contact.
- Versatile Application: Optimized for use in motor control circuits, signaling systems, and logical automation frameworks.
What is the maximum current rating for the E22B2 contact block?
The E22B2 is standard-duty rated for AC and DC control circuits, typically following NEMA A600 and Q600 ratings for heavy-duty industrial applications.
Is the E22B2 compatible with non-E22 series operators?
No, this block is specifically engineered for the Eaton E22 series 22.5mm line. Using it with other series may result in improper mechanical actuation or fitment issues.
How many E22B2 blocks can be stacked together?
Depending on the specific operator and enclosure depth, these blocks can generally be stacked two or three deep to achieve the necessary contact configuration for your control sequence.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
