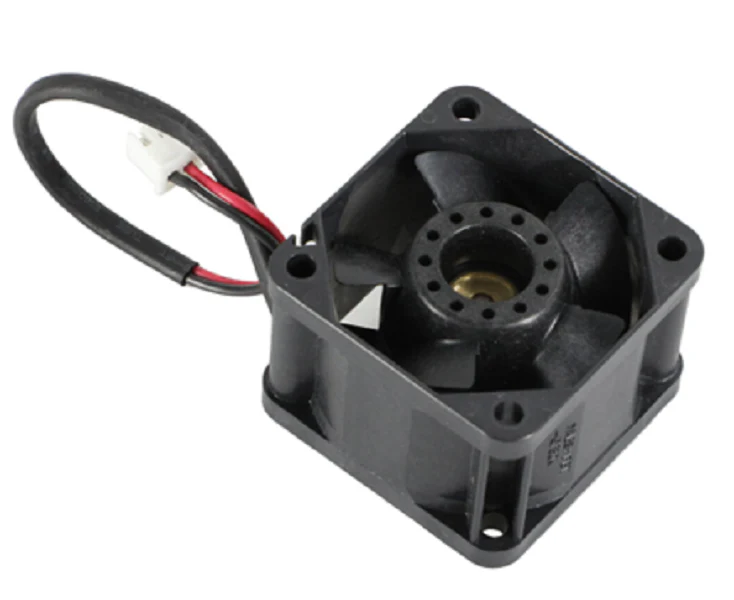

Eaton Cutler-Hammer DXG-SPR-FR2CF Fan
Optimizing the thermal performance of your variable frequency drive is critical for long-term reliability. The Eaton Cutler-Hammer DXG-SPR-FR2CF is a factory-direct Frame 2 PowerXL DG1 Control Fan replacement designed specifically for 230V/480V units. As a technical professional, you know that a failed control fan leads to F32 Fan Cooling Fault or F14 Drive Over Temperature codes, which can trigger an immediate system shutdown or fold back the switching frequency to protect the IGBTs. This Eaton VFD renewal part ensures your PowerXL DG1 series drive maintains the necessary airflow across the control board and internal components to prevent de-rating. The DXG-SPR-FR2CF is an authentic OEM replacement fan that integrates seamlessly with the existing FR2 control module. Its robust construction is engineered to meet industrial VFD cooling standards, handling the demands of high-ambient environments where consistent heat dissipation is required to maintain the 24,000-hour operational life of the drive's electronics.
Key Benefits for the Contractor:- Direct Compatibility: Exact FR2 frame size fitment for Eaton PowerXL DG1 drives, ensuring the electrical connector matches the control board perfectly.
- Prevent Downtime: Resolves F65 Replace Fan warnings before they escalate into critical over-temperature faults.
- Simplified Installation: Features the standard two-tab squeeze-and-pull mechanism for rapid field replacement without complex teardowns.
- Verified Performance: Operates at the correct 24VDC spec for Frame 1-4 drives, maintaining precise RPM for calibrated airflow.
Is this fan compatible with any other Eaton drive series?
This part is specifically engineered for the PowerXL DG1 Frame 2 modules. While it may share physical dimensions with other fans, the voltage and connector pin-out are calibrated for the DG1 control circuit.
How do I clear the F65 Replace Fan warning after installing the new unit?
After hardware installation, navigate to the P9 Protections menu on the keypad. You must reset the fan runtime counter or adjust the P9.37 Replace Fan Fault Response parameter to 'No Action' or 'Fault' to re-initialize the monitoring system.
Does this kit include the mounting screws?
The DXG-SPR-FR2CF typically utilizes the existing chassis clips or integrated tabs found in the FR2 housing. If your specific enclosure uses the four-corner screw mounting plate, ensure those are retained during the swap.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
