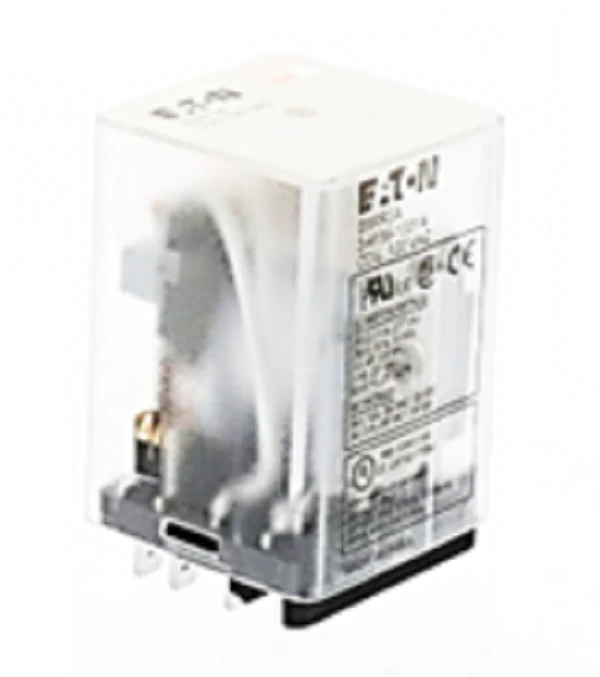

Eaton Cutler-Hammer D5RR3A Relay
The Eaton Cutler-Hammer D5RR3A Relay is a reliable, industrial-grade general-purpose ice cube relay designed for demanding control circuit applications. This 120V AC coil relay features a 3PDT (Triple Pole Double Throw) contact arrangement, though it is frequently utilized in DPDT high-amperage switching environments. Built with a robust 11-pin blade base, it ensures secure plug-in mounting to standard sockets, minimizing resistance and preventing mechanical failure during high-vibration operation. Rated for 15A (or 10A depending on specific resistive load standards), this unit is ideal for HVACR motor controls, automation panels, and furnace sequencing where reliable 120VAC switching is non-negotiable.
For contractors, the D5RR3A provides clear diagnostic advantages with its mechanical flag indicator, allowing for immediate visual confirmation of relay status without a multimeter. Its high dielectric strength and 300V maximum switching voltage make it a standard replacement for many 11-pin 120V relays in commercial refrigeration and indoor air quality systems.
Key Benefits- Enhanced Versatility: The 3PDT contact configuration supports complex logic and provides multiple normally open/normally closed paths for system feedback and load control.
- Simplified Installation: Standard 11-pin plug-in design fits most common industrial sockets, reducing downtime during field replacements.
- Durable Performance: Engineered for millions of mechanical cycles, handling inductive loads and inrush currents common in blower motor and compressor startups.
- Visual Diagnostics: Built-in flag indicator simplifies troubleshooting by showing the actual position of the contacts.
- Can this relay replace a DPDT 11-pin model? Yes, provided the coil voltage is 120V and the pin configuration matches. The 3PDT layout offers an extra set of contacts that can be left unused if only two poles are required.
- What is the maximum current rating for this Eaton relay? This unit is typically rated for 10A to 15A resistive loads at 120VAC, making it suitable for most auxiliary HVAC control circuits.
- Does this include the socket base? No, this is the plug-in relay unit. Standard 11-pin sockets are sold separately to match your mounting requirements (DIN rail or surface mount).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Eaton Cutler-Hammer D5RR3A Relay
The Eaton Cutler-Hammer D5RR3A Relay is a reliable, industrial-grade general-purpose ice cube relay designed for demanding control circuit applications. This 120V AC coil relay features a 3PDT (Triple Pole Double Throw) contact arrangement, though it is frequently utilized in DPDT high-amperage switching environments. Built with a robust 11-pin blade base, it ensures secure plug-in mounting to standard sockets, minimizing resistance and preventing mechanical failure during high-vibration operation. Rated for 15A (or 10A depending on specific resistive load standards), this unit is ideal for HVACR motor controls, automation panels, and furnace sequencing where reliable 120VAC switching is non-negotiable.
For contractors, the D5RR3A provides clear diagnostic advantages with its mechanical flag indicator, allowing for immediate visual confirmation of relay status without a multimeter. Its high dielectric strength and 300V maximum switching voltage make it a standard replacement for many 11-pin 120V relays in commercial refrigeration and indoor air quality systems.
Key Benefits- Enhanced Versatility: The 3PDT contact configuration supports complex logic and provides multiple normally open/normally closed paths for system feedback and load control.
- Simplified Installation: Standard 11-pin plug-in design fits most common industrial sockets, reducing downtime during field replacements.
- Durable Performance: Engineered for millions of mechanical cycles, handling inductive loads and inrush currents common in blower motor and compressor startups.
- Visual Diagnostics: Built-in flag indicator simplifies troubleshooting by showing the actual position of the contacts.
- Can this relay replace a DPDT 11-pin model? Yes, provided the coil voltage is 120V and the pin configuration matches. The 3PDT layout offers an extra set of contacts that can be left unused if only two poles are required.
- What is the maximum current rating for this Eaton relay? This unit is typically rated for 10A to 15A resistive loads at 120VAC, making it suitable for most auxiliary HVAC control circuits.
- Does this include the socket base? No, this is the plug-in relay unit. Standard 11-pin sockets are sold separately to match your mounting requirements (DIN rail or surface mount).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
